SP09 Series Modern Door Handles With Backplate 168*44mm

Model No.SR09SL102
MaterialStainless Steel AISI314
Plate Size168*44mm
Lever Length140mm
Projection62mm
FinishSatin, Polished, PVD Titanium, or custom
UseCommercial and residential use
StandardEN1634, EN1906
Fire Test240minuts/4Hours



>> Get Complete Door Handle Catalog

Print It
  • Product Detail
  • Tests and Standards
  • Certificates

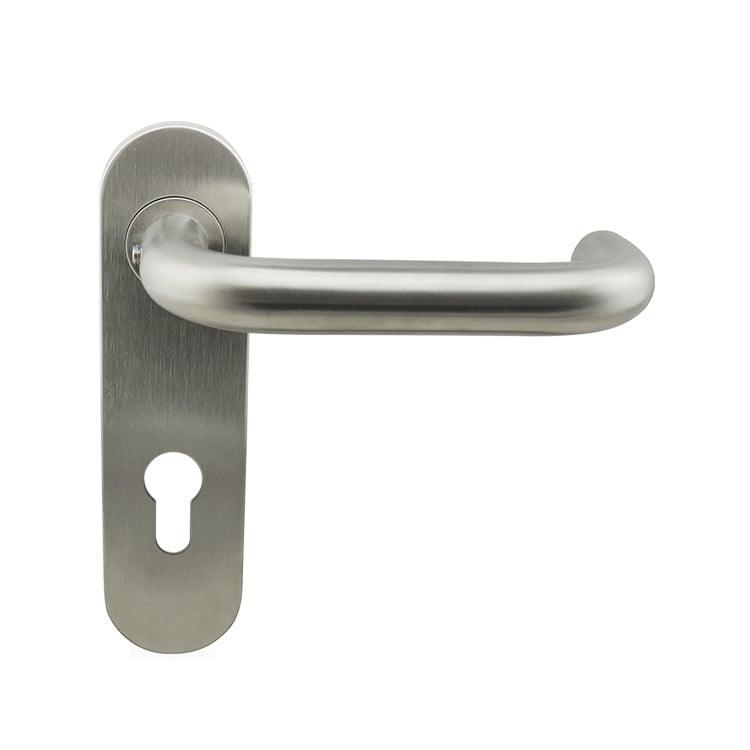

HUACI SP09SL102 modern door handles with backplate are EN1906 Grade 3 tested and EN1634-1 fire rated, they are very great for commercial and residential use. For the function, this long size plate door handle set is available for passage, privacy, dummy use.

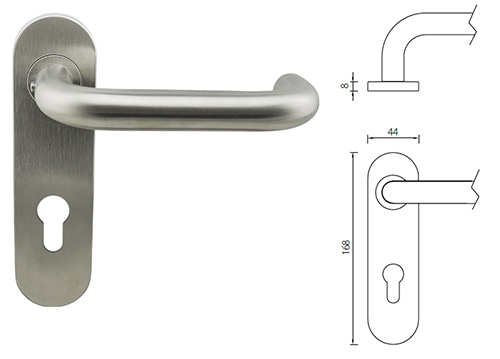

Modern Door Handles With Backplate For Commercial And Residential Use



Specifications and Features

- EN1906 Grade 3 tested and EN1634-1 fire rated
- For the material of SP09SL102 modern door handles with backplate, it is stainless steel AISI304
- Concealed fixing
- Loaded with the spring mechanism
- Compatible with 72mm center mortice locks, and perfectly fitted with HUACI ML10/ML20 series lock
- Hexagonal countersank to assist thru-bolt fixing
- Good for retrofitting with current fire rated door handle

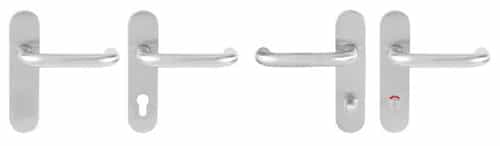

Escutcheon Options

SP09SL102 Escutcheon Options



Finishes

- Satin Stainless Steel (US32D/630)
- Polished Stainless Steel (US32/629)
- Satin PVD Titanium
- Bright PVD Titanium

Available finishes of Entry Door Handle Lever Set SR01 En1906 Grade 4



EN1906:2010 Classifications

37 - /td>1140B
Door handle's type test to EN1906Successfully type-tested for conformity to all of the requirements of EN1906: 2010

(including 240-hours of corrosion resistance requirement of EN 1670:2007)

Entry Door Handle Lever Set SR01 En1906 Grade 4 - ICON 2EN1906 Grade 4 tested fire door handle leverhas successfully passed 240-minutes fire

test of metal door assemblies to EN 1634-1: 2014

Entry Door Handle Lever Set SR01 En1906 Grade 4 - ICON 3All tests performed independently and certified by Exova/Warringtonfire/Warrington APT.

Test reports and/or certificates are available upon request
