Narrow Door Handle, Profile Door Handle With Oval Rose Design

Narrow Profile Door Handle With Oval Rose Design

Model No.	SR03SL114
Material	Stainless Steel AISI304 or custom
Oval Rose Size	70*32mm
Lever Length	150mm
Projection	71mm
Finish	Satin, Polished, PVD Titanium, or custom
Application	Commercial & Residential use
Standard	EN1634, EN1906
Fire Test	240minuts/4Hours

>> Get Complete Door Handle Catalog

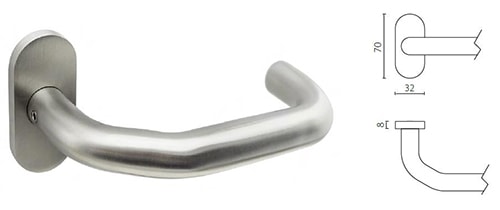

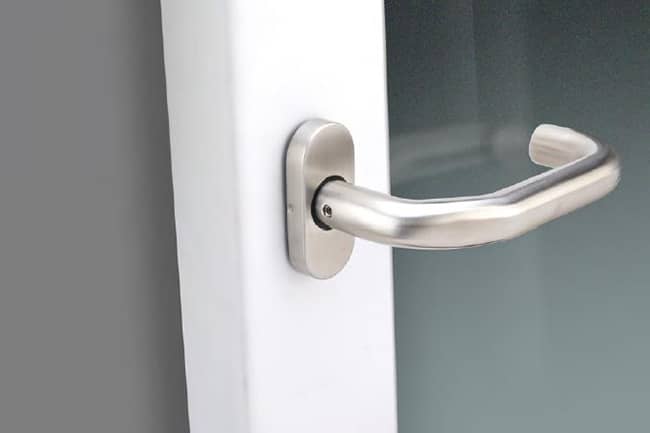

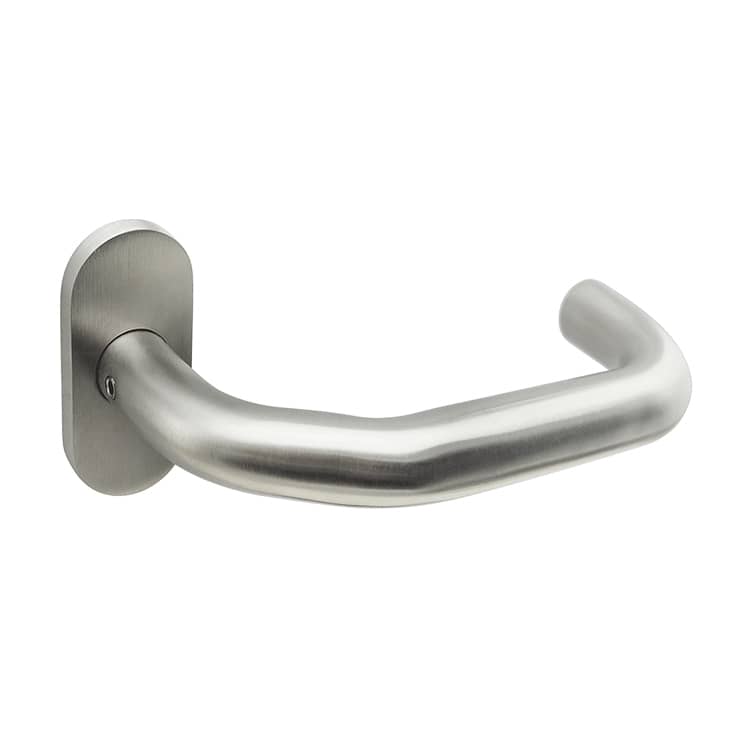

HUACI SR03SL114 series narrow door handle is designed with a 70*32mm oval rose, so it is very suitable for narrow stile doors, french doors.

Specifications and Features

- SR03SL114 narrow door handle has double action spring-loaded rose design, upward or downward operation is OK.
- Concealed fixing
- Hexagonal countersank to assist thru-bolt fixing
- Successfully type-tested for conformity to all of the requirements of EN1906: 2010, including 240-hours of corrosion resistance requirement of EN1670:2007.
- Standard Finish: Satin Stainless Steel (Other finish available on request)

Escutcheon Options

Blind

Euro Cylinder

Finishes

- Satin Stainless Steel (US32D/630)
- Polished Stainless Steel (US32/629)
- Satin PVD Titanium
- Bright PVD Titanium

Available finishes of Entry Door Handle Lever Set SR01 En1906 Grade 4

	Successfully type-tested for conformity to all of the requirements of EN1906: 2010 (including 240-hours of corrosion resistance requirement of EN 1670:2007)
	EN1906 Grade 4 tested fire door handle leverhas successfully passed 240-minutes fire test of metal door assemblies to EN 1634-1: 2014
	All tests performed independently and certified by Exova/Warringtonfire/Warrington APT. Test reports and/or certificates are available upon request
