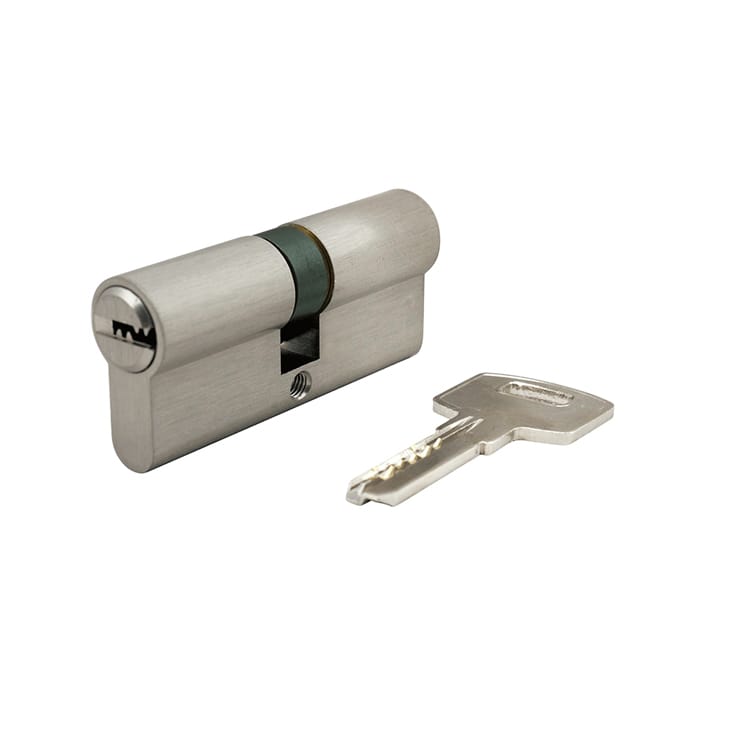

Double euro cylinder ECD3030 with 6 pins, anti-drill & anti-pick

HUACI ECD3030 anti-drill 6 pins double euro cylinder is designed with dimpled pin system; And for the function, it is suitable for commercial or residential applications to provide extra security.

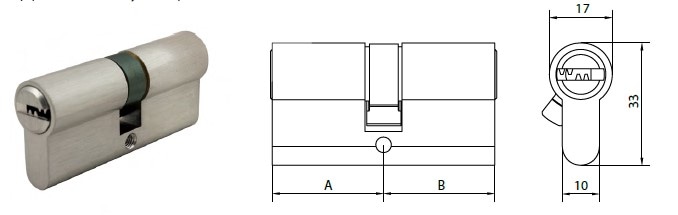

ECD3030 anti-drill double euro cylinder

A=30mm B=30mm

Specifications and Features
- Standard euro profile dimension according to DIN18252
- ECD3030 double euro cylinder is made of solid brass body and keys
- Reversible key operation (double-sided dimpled keys)
- Various lengths available for different door thickness
- Symmetrical and asymmetrical variant available to work with the different lock installation position
- 6 pins construction to maximize key combination and security

EN1303:2005 Classification

Finishes

- Satin Nickel (SN)
- Brass Polished (BP)
- Nickel Plated (NP)
- Antique Brass (AB)

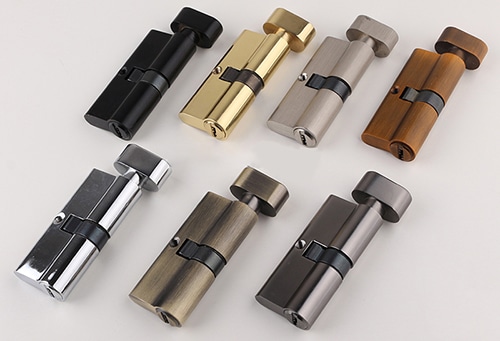

ECD euro cylinder with various finishes

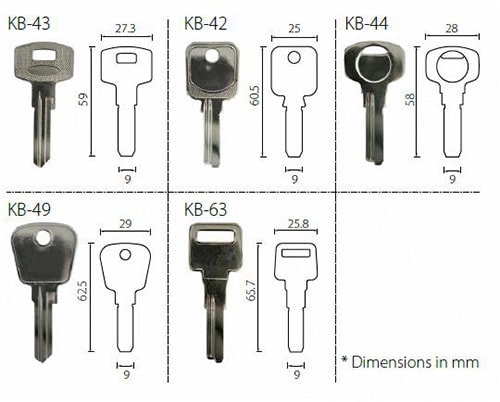

Key Bow Options

HUACI Key Bow Options

Related Products

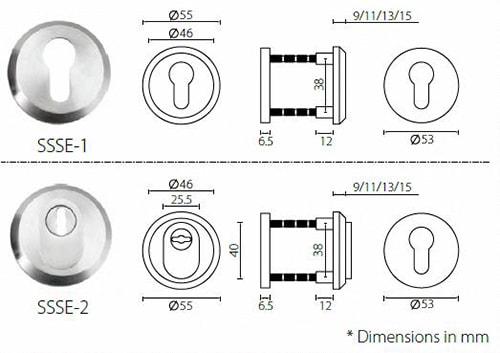

Stainless Steel Security Escutcheons

HUACI stainless steel security escutcheons

About HUACI Euro Cylinder
HUACI’s profile cylinders are suitable for most of the European locks with EN standards, and they are compliance to EN1303:2005 standards for commercial/industrial standards.

>> Full Catalog Download
>> Quick Inquiry and Quote

	Successfully type-tested for conformity to all of the requirements of EN1303:2005
	Successfully passed 240-minutes fire test of metal door assemblies to EN1634-1:2014
	All tests performed independently and certified by Exova/Warringtonfire/ Warrington APT. Test reports and/or certificates are available on request
