Door Lock/

ML107206X ANSI Grade 1 entrance escape lock

Model No.ML107206X
Lock TypeEntrance escape lock

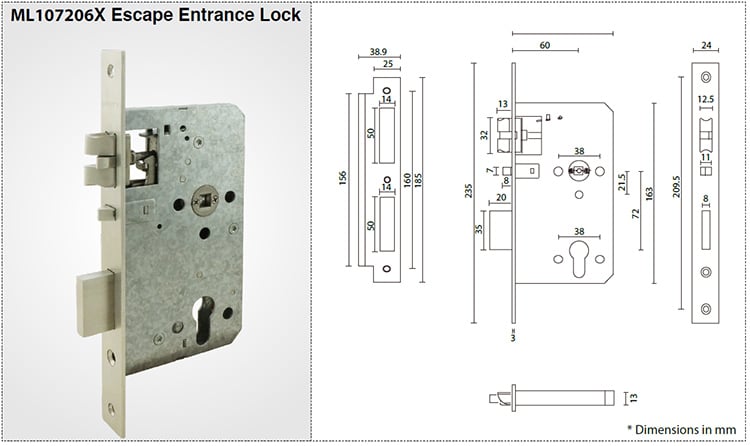

Center72mm
Backset Size60mm
Case Size(L*W*H)163mm*91mm*13mm
Forend/Plate Size209.5mm*24mm

Print It
  • Product Detail
  • Standars and Certification

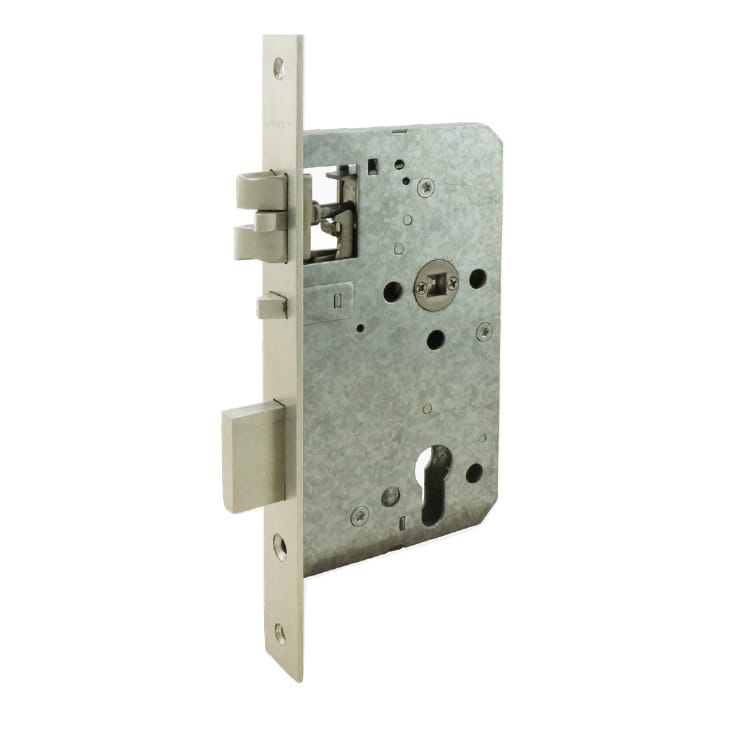

ML107206X ANSI Grade 1 entrance escape lock

ML107206X ANSI Grade 1 entrance escape lock-x

Specifications and Features

-Designed to meet and exceed ANSI/BHMA 156.13 Grade 1 door mortise lock body requirement.

- Design for conformity to all of the requirement of EN12209: 2003

- Hybrid design of ANSI Specification in a Euro mortise lock case

- Modular case across functions for rapid door preppingand installation

- ML107206X ANSI Grade 1 entrance escape lock: 72mm centers, backset in 60mm

- 8mm follower

- Field reversible Anti-Friction latch bolt in solid stainlesssteel with 13 mm projection

- Single throw deadbolt in solid stainless steel with 20mmprojection

- Stainless steel faceplate and strike plate

- Compatible with bolt through furniture and escutcheonsof 38mm centers

- Compatible with the standard cylinder with Euro compatible cam

- Covers various functions and applications

ANSIBHMA A156.13 Grade 1 heavy duty Mortise Lock For School Classroom

Certification for ANSI BHMA Grade 1 Mortise Lock
