Pull Handle/

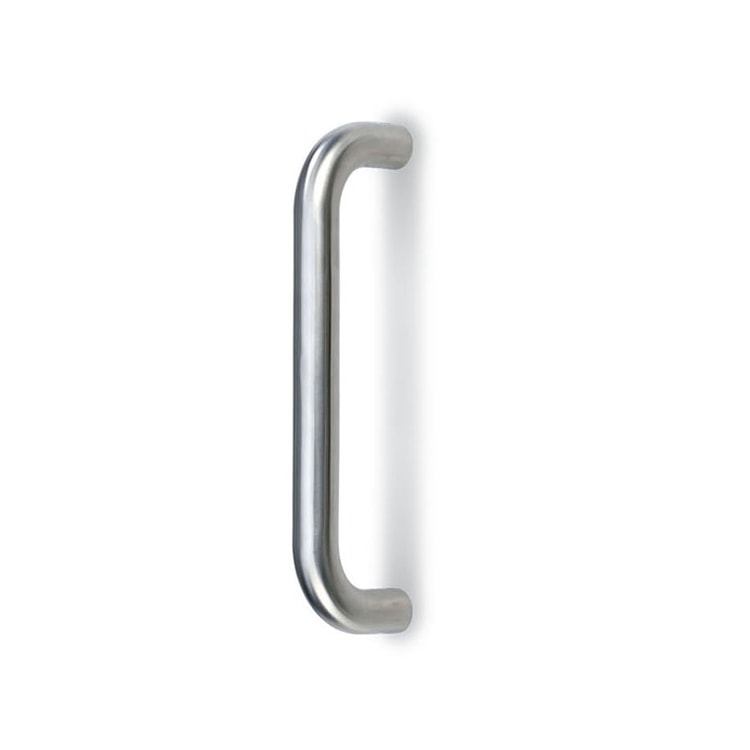

U shape stainless steel door pull handle

MaterialStainless Steel SS304 / SS316
CTC150mm to 1000 mm
Tube Diameter19/22/25/32 mm
FixingsBolt Through & Back to Back & Screw

Print It
  • Product Detail
  • Fixings

U shape door pull handle DPH02 can be used for a wide range of applications in both commercial and residential door industries. Whether it’s glass, wood, composite, aluminum, or hollow metal door, we have a selection of fixing methods to suit nearly every application.

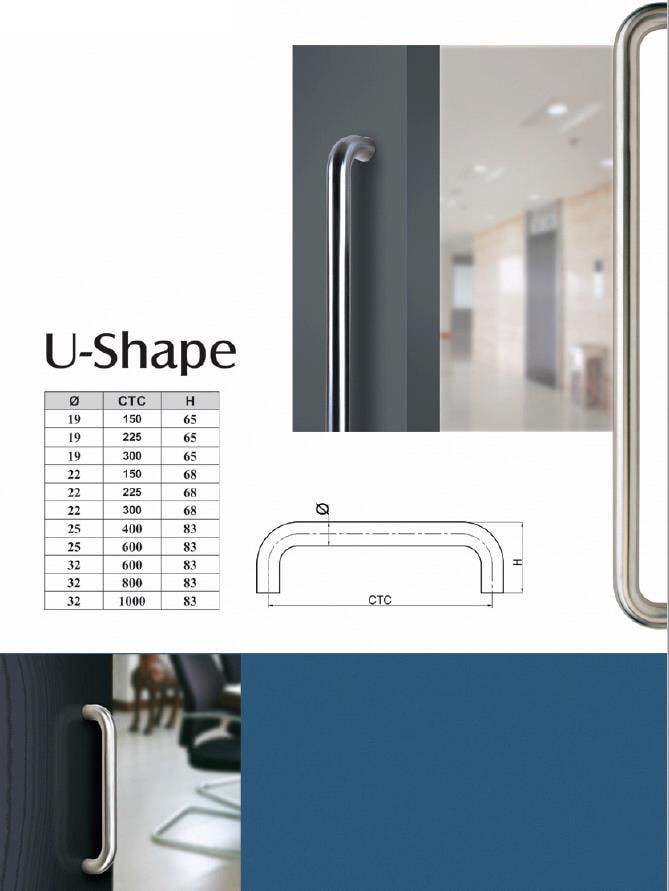

U-Shape Door Pull Handle-3

Finishes

  • Satin stainless steel
  • Polished stainless steel
  • Stainless steel PVD Titanium
  • Stainless steel PVD Black Tone

*Other finishes available upon request.

The natural satin and polished stainless steel are primary finishes for the DPH02 U shape door pull handle. The refined linen-polishing reveals the elegant natural luster of nickel, while the bright polished finish highlights the natural chrome. PVD(physical vapor deposit) coating on stainless steel improves hardness and wear resistance, it creates the state of the art and life-time decorative finishes.



For the fixings of the HUACI Door pull handle, we supply complete fixing packs that can be used for any design or size pull handle and allows for the greatest flexibility for different applications and fixing requirements while helping you maintain the minimum stock level.

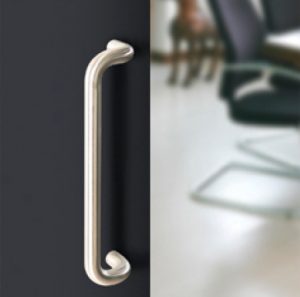

Single side screw fixing for door pull handles



Single Side Screw Fixing

- Single pull handle in any design or size

-Fixture pack:

Universal adaptor and grab screws

Self-taping screws

Screw length subject to door thickness

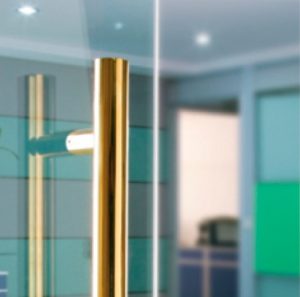

Back to back fixings for door pull handle



Back to Back Fixing

-Pull handle pair in any design or size

-Fixture pack for all door type:

Universal adaptor and grab screws

75mm Thru bolts for door thickness 13mm to 50mm

100mm Thru bolts for door thickness over 50mm

Clear nylon washers for glass door application

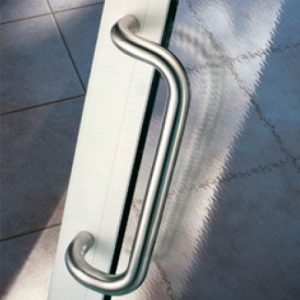

Singe side bolt through fixing

Single Side Screw Fixing

-Single pull handle in any design or size

-Fixture pack for Hollow Metal Door:

Universal adaptor and grab screws

75mm Thru bolts for door thickness 13mm to 50mm

100mm Thru bolts for door thickness over 50mm

Clear nylon washers for glass door application

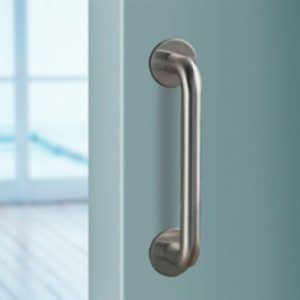

On roses concealed fixing

On Roses Concealed Fixing

-Single pull handle in any design or size

-Fixture pack for all door types:

Stainless Steel Roses Dia.53x8mm

Roses fixed to handle by M8 bolts

Roses with concealed fixing by wood screws or self-tapping screws

*Other roses dimensions available to order
