Door Handle/

Stainless steel door handle for commercial use En1906 Grade 3

Model No.SR02SL103
MaterialStainless Steel AISI314(AISI316 is available upon request)
Rose Diameter53mm
Lever Length135mm
Projection62mm
FinishSatin, Polished, PVD Titanium, or custom
UseExterior Doors/Interior Doors
StandardEN1634, EN1906
Fire Test240minuts/4Hours



>> Get Complete Door Handle Catalog

Print It
  • Product Detail
  • Drawings
  • Tests and Standards
  • Certificates

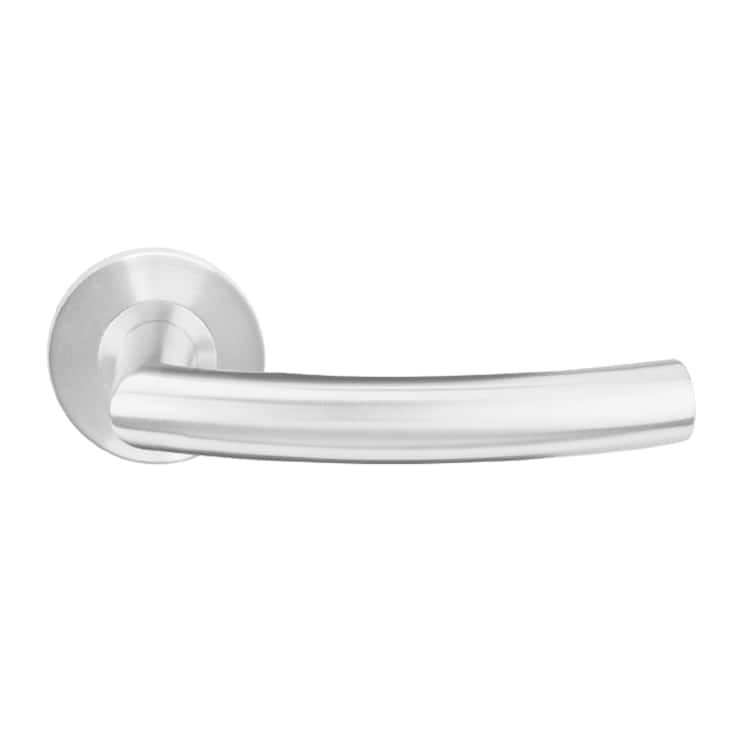

HUACI stainless steel door handle SR02SL103 is built with optimized design for interior and exterior doors, they are suitable for most commercial and residential applications.

HUACI Grade 3 stainless steel door handle

Specifications and Features

- EN1906 Grade 3 tested and EN 1634-1 fire rated stainless steel door handle

- Made of stainless steel AISl304 (A1S1316 available on request)

- 6.5mm rose design to preserve the minimum height with a spring mechanism

- Concealed screw fixing

- Inner rose indentation to secure the rose cover with a “clean - look on the handle

- Hexagonal countersunk to assist thru-bolt fixing

- The architecturallook achieved by minimum edge radius on rose cover

Finishes

- Satin Stainless Steel (US32D/630)
- Polished Stainless Steel (US32/629)
- Satin PVD Titanium
- Bright PVD Titanium

*Other finishes available on request

Available finishes of Entry Door Handle Lever Set SR01 En1906 Grade 4

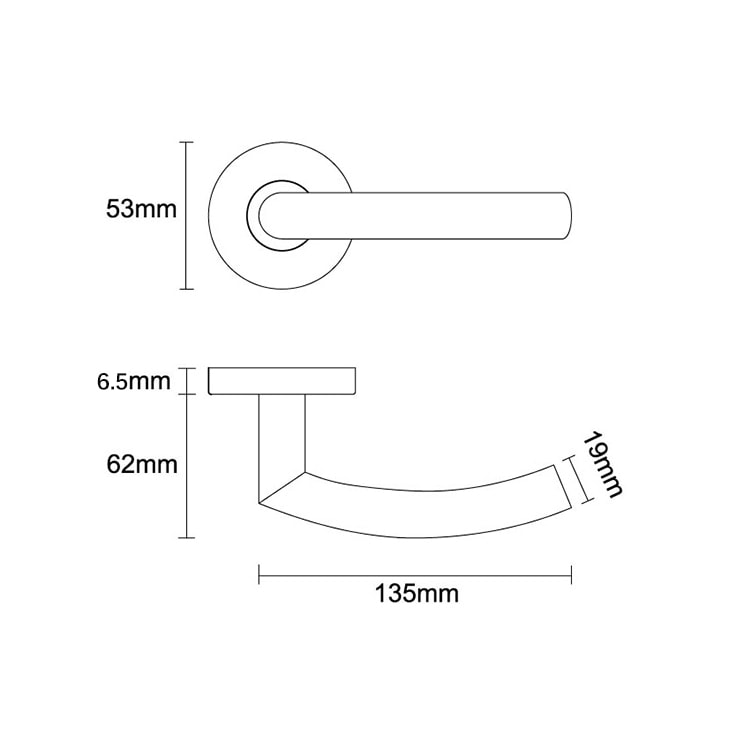

Stainless Steel Door Handle For Commercial Use-size



Door handle's type test to EN1906Successfully type-tested for conformity to all of the requirements of EN1906: 2010

(including 240-hours of corrosion resistance requirement of EN 1670:2007)

Entry Door Handle Lever Set SR01 En1906 Grade 4 - ICON 2EN1906 Grade 4 tested fire door handle leverhas successfully passed 240-minutes fire

test of metal door assemblies to EN 1634-1: 2014

Entry Door Handle Lever Set SR01 En1906 Grade 4 - ICON 3All tests performed independently and certified by Exova/Warringtonfire/Warrington APT.

Test reports and/or certificates are available upon request

EN1906:2010 Classifications

37 - /td>1140B
