Commercial Door Handle For Public Buildings En1906 Class 4

Model No.SR01SL109
MaterialStainless Steel AISI314(AISI316 is available upon request)
Rose Diameter53mm
Lever Length137mm
Projection65mm
FinishSatin, Polished, PVD Titanium, or custom
UseExterior Doors/Interior Doors
StandardEN1634, EN1906
Fire Test240minuts/4Hours



>> Get Complete Door Handle Catalog

Print It
  • Product Detail
  • Drawings
  • Tests and Standards
  • Certificates

HUACI SR01SL109 commercial door handle lever set is great for high-frequency applications where potential misuse likely takes place.

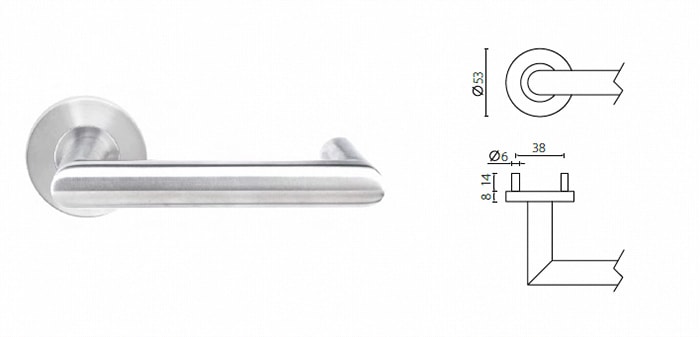

Commercial Door Handle For Public Buildings En1906

Specifications and Features

- It is EN 1 906 Grade 4 tested and EN 1634-1 fire rated
- This commercial door handle can be made of stainless steel AISl304 (A1S13 l 6 is available on request)
- Built with the robust spring mechanism
- With concealed screw fixing
- It has an inner rose indentation to secure the rose cover with a “clean - look on the handle
- Hexagonal countersunk and fixing lugs to assist thru-bolt fixing
- The architectural look achieved by minimum edge radius on the rose cover

Finishes

- Satin Stainless Steel (US32D/630)
- Polished Stainless Steel (US32/629)
- Satin PVD Titanium
- Bright PVD Titanium

Available finishes of Entry Door Handle Lever Set SR01 En1906 Grade 4

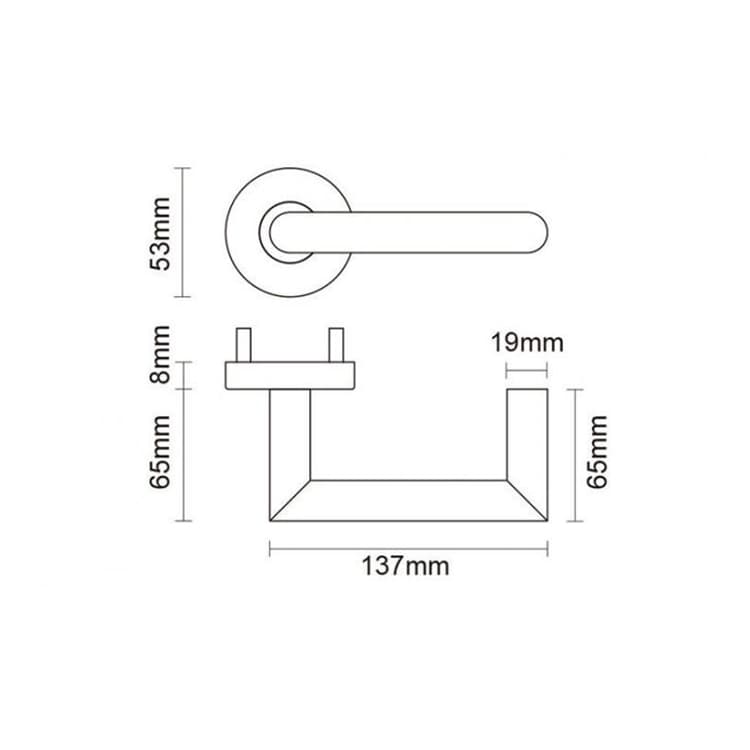

Commercial Door Handle For Public Buildings En1906 Class 4-size



Door handle's type test to EN1906Successfully type-tested for conformity to all of the requirements of EN1906: 2010

(including 240-hours of corrosion resistance requirement of EN 1670:2007)

Entry Door Handle Lever Set SR01 En1906 Grade 4 - ICON 2EN1906 Grade 4 tested fire door handle leverhas successfully passed 240-minutes fire

test of metal door assemblies to EN 1634-1: 2014

Entry Door Handle Lever Set SR01 En1906 Grade 4 - ICON 3All tests performed independently and certified by Exova/Warringtonfire/Warrington APT.

Test reports and/or certificates are available upon request

EN1906:2010 Classifications

47 - /td>1140B
