ECD1030 single profile half euro cylinder is designed with a dimpled pin system suitable for commercial and residential applications. Keyed operation from one side (outside) only.

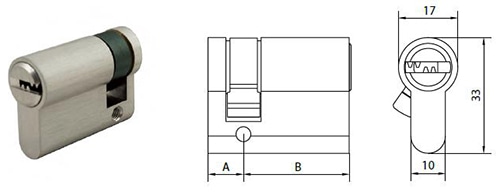

A=10mm B=30mm
Other sizes available
| Item No. | A (30-60MM) | B (30-60MM) |
| ECD1030 | 10 | 30 |
| ECD1035 | 10 | 35 |
| ECD1040 | 10 | 40 |
| ECD1045 | 10 | 45 |
Specifications and Features
- Standard euro profile dimension according to DIN18252
- ECD1030 single profile half euro cylinder is made of solid brass body and keys
- Reversible key operation (double-sided dimpled keys)
- Various lengths available for different door thickness
- Symmetrical and asymmetrical variant available to work with the different lock installation position
- 6 pins construction to maximize key combination and security
- Anti-drill pins and Anti-pick pins available upon request
- Enhanced attack resistance provided by HUACI security escutcheons
EN1303:2005 Classification
| 1 | 6 | 0 | 1 | 0 | C | 5 | 2 |
Finishes
- Satin Nickel (SN)
- Brass Polished (BP)
- Nickel Plated (NP)
- Antique Brass (AB)
About HUACI Euro Cylinder
HUACI’s profile cylinders are suitable for most of the European locks with EN standards, and they are compliant with EN1303:2005 standards for commercial/industrial standards.
