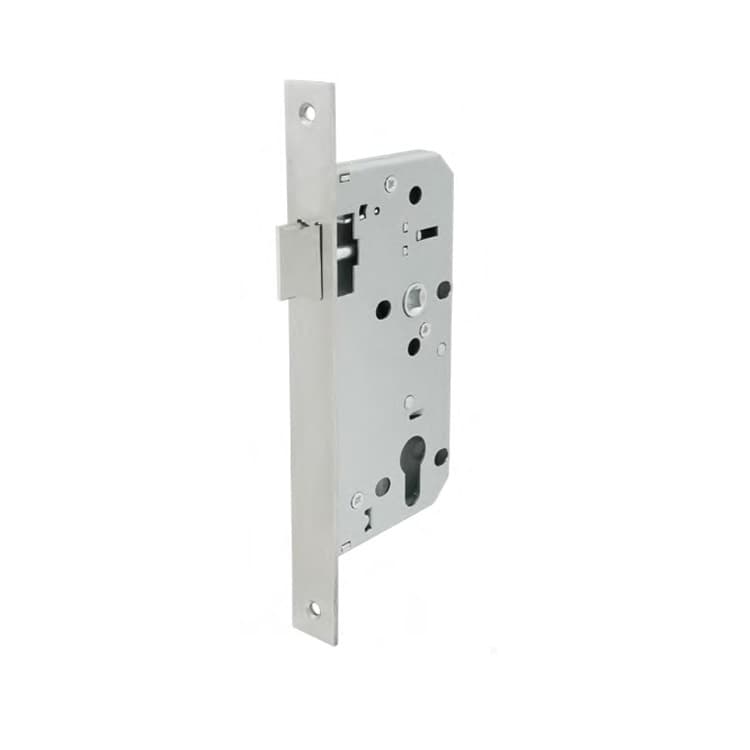

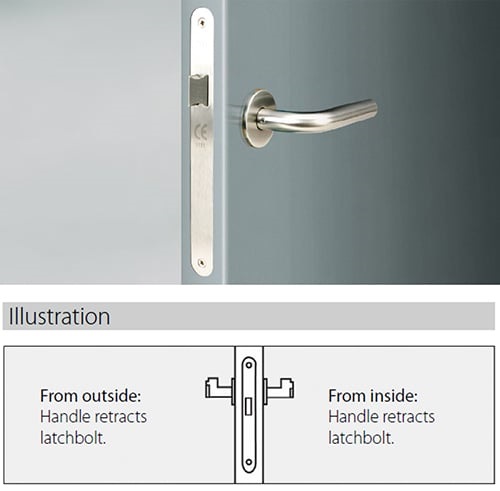

HUACI ML207202 passage mortice lock is suitable for latched doors remaining unlocked at all times. For the application, this type of passage mortice lock is great for commercial offices, where potential misuse may take place.
Specifications and Features
- Modular case across functions for rapid door prepping and installation

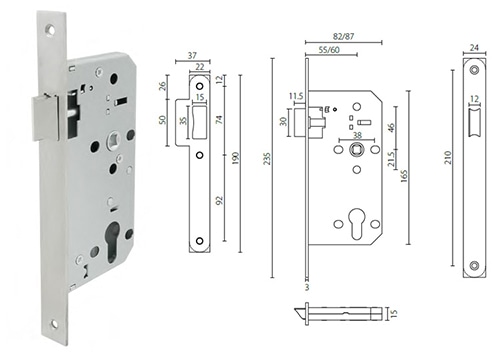

- ML207202 passage mortice lock is available with 72mm center, backset in 55/60mm
- 8mm solid steel follower
- Easy reversible latchbolt in solid brass*
- Double throw deadbolt in solid steel with 20mm projection
- Suitable for sprung and light un-sprung lever furniture
- Stainless steel faceplate and strike in square and radius version
- Compatible with bolt through furniture and escutcheons of 38mm centers
*Convenient reversibility without tools
EN12209:2003 Classification
| 3 | S | 7 | 1 | 0 | G | 3 | B | C | 2 | 0 |
Forend and Strike Finishes
 Satin | The matching finish on latch bolt and deadbolt *Other finishes available upon request |
Trim Options:
Lever Options
Suitable with any HUACI lever design
* Please refer to HUACI Lever Handle catalog for more detail on Lever and Trim options
About HUACI Door Mortice Locks
HUACI manufacture and supply a comprehensive range of mortise lock, mortice latch, and related door lock hardware designed and made in China. The door lock items cover from mortise locks and latches, tubular latch locks, magnetic door locks, narrow mortice locks, to compact mortice locks, and lever mortice locks.
