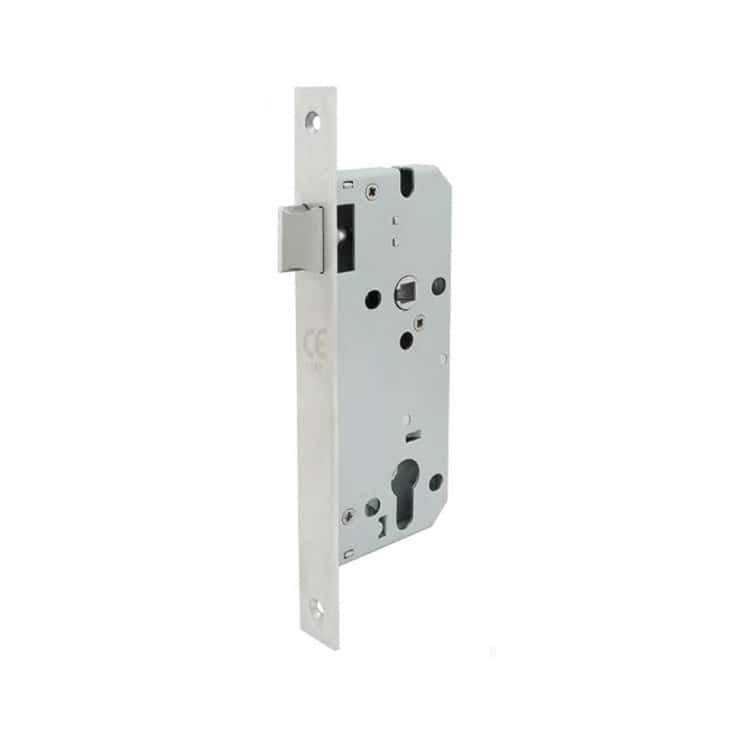

Passage mortise lock latch ML108502 for latched doors

ML108502 passage mortise lock latch for latched doors,85mm center,40/45/50/60mm backset

Model No.	ML108502
Finish（Forend/Strike)	Satin
Backset size	40/45/50/60mm
Centers	85mm
Case Size(LWH)	1706924mm
Forend/Plate Size	210*24mm
Function	Latch/Passage
Standard/Certificate	EN12209:2003
Fire Certificate	Certifire CF5333
Fire Test	240minutes

>> Get Complete Mortice Lock Catalog

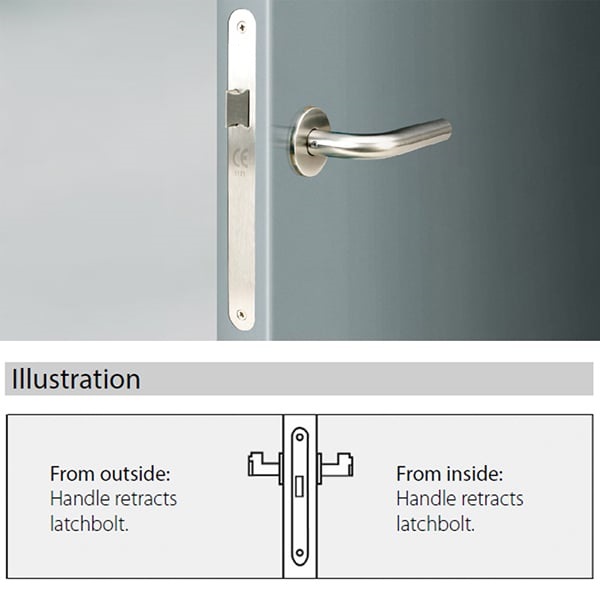

HUACI ML108502 passage mortise lock latch is suitable for latched doors remaining unlocked at all times.

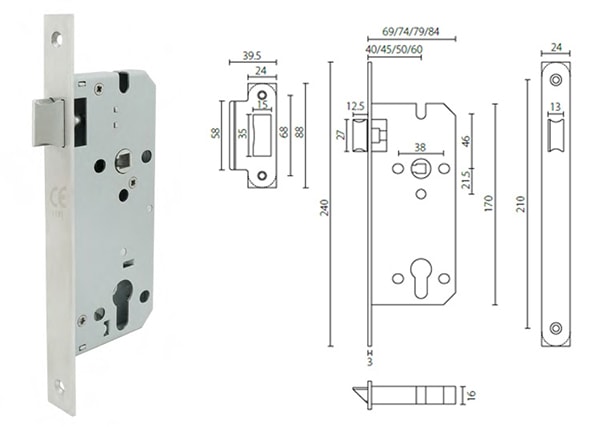

ML108502 mortise lock for latched doors - 3

Specifications and Features

- ML108502 passage mortise lock latch has modular case across functions for rapid door prepping, and installation
- 85mm centers, backset in 40/45/50/60mm
- 8mm follower with spindle gripping function
- Reversible latch bolt in solid stainless steel
- Suitable for sprung and most un-sprung lever furniture
- Stainless steel faceplate and strike in square and radius version (radius version improves door prep efficiency with machine routing)
- Compatible with bolt through furniture and escutcheons of 38mm centers

EN12209:2003 Classification

ML108502 passage latch mortise lock

Forend and Strike Finishes

Satin

The matching finish on latch bolt and deadbolt
*Other finishes available upon request

Trim Options:

ML1072 door mortise lock -Trim option

Lever Options

Suitable with any HUACI lever design

* Please refer to HUACI Lever Handle catalog for more detail on Lever and Trim options

About HUACI Door Mortice Locks
HUACI manufacture and supply a comprehensive range of mortise lock, mortice latch, and related door lock hardware designed and made in China. The door lock items cover from mortise locks and latches, tubular latch locks, magnetic door locks, narrow mortice locks, to compact mortice locks, and lever mortice locks.

>> Full Catalog Download
>> Quick Inquiry and Quote

	Successfully type-tested for conformity to all of the requirement of EN12209: 2003
	Successfully passed and exceeded the 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014
	CE Declaration of Conformity available upon request
	Meets the dimensional recommendations of BS8300 and Approved Document “M
	*HUACI ML1072 series locks are approved by Certifire. Certifire No. CF5333**
	All EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT. Test reports/certificates are available upon request.
* Certifire is an independent third party certification scheme that assures performance, quality, and traceability of fire protection products
