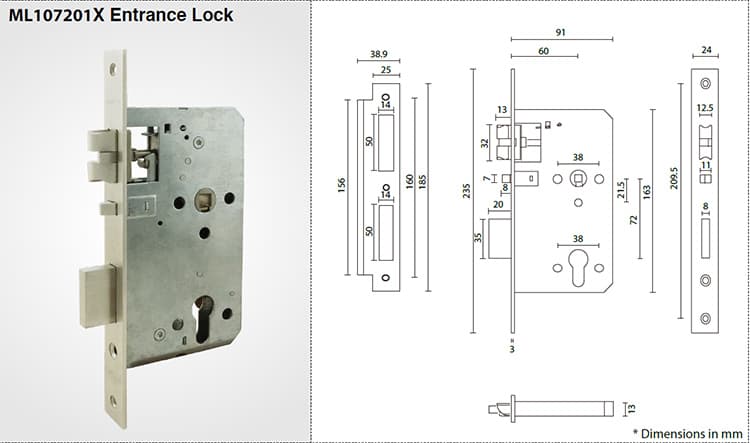

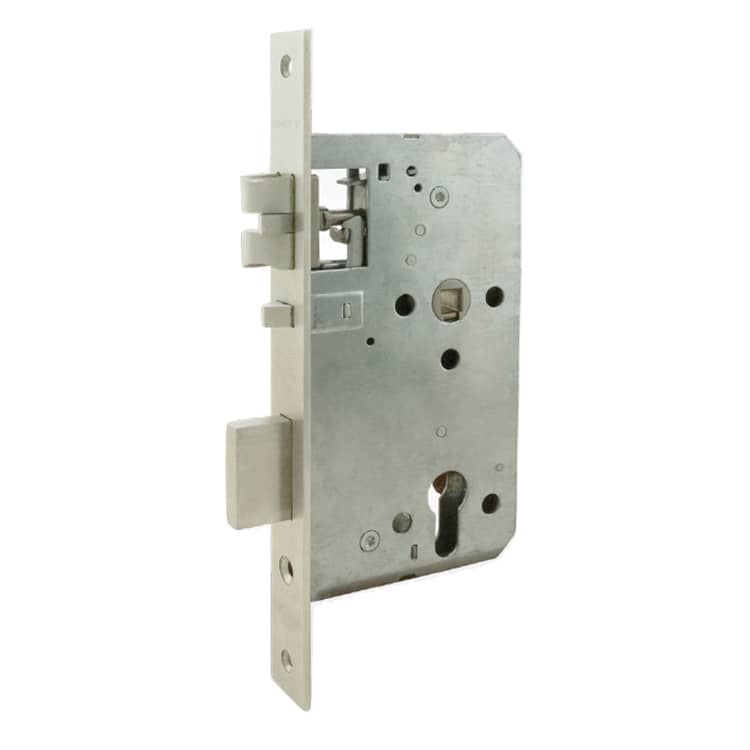

ANSI/BHMA Grade 1 Entry Door Lock Set ML107201X

Model No.ML107201X
Lock TypeEntrance Lock
Center72mm
Backset Size60mm
Case Size(L*W*H)163mm*91mm*13mm
Forend/Plate Size209.5mm*24mm
Finish(Forend/Strike)Satin, Custom finishes



>> Get Complete Mortice Lock Catalog

Print It
  • Product Detail
  • Standars and Certification

HUACI Intertek tested ANSI Grade 1 entry door lock set ML107201X in EN lock body is designed and built for very high-frequency usage applications such as public access buildings and schools where deliberate abuse likely takes place.

Grade 1 Entry Door Lock Set ML107201X Entrance Lock-X

Specifications and Features

-Designed to meet and exceed ANSI/BHMA 156.13 Grade 1 door mortise lock body requirement.

- Design for conformity to all of the requirement of EN12209: 2003

- Hybrid design of ANSI Specification in a Euro mortise lock case

- Modular case across functions for rapid door preppingand installation

- Entry door lock set ML107201X: 72mm centers, backset in 60mm

- 8mm follower

- Field reversible Anti-Friction latch bolt in solid stainlesssteel with 13 mm projection

- Single throw deadbolt in solid stainless steel with 20mmprojection

- Stainless steel faceplate and strike plate

- Compatible with bolt through furniture and escutcheonsof 38mm centers

- Compatible with the standard cylinder with Euro compatible cam

- Covers various functions and applications

ANSIBHMA A156.13 Grade 1 heavy duty Mortise Lock For School Classroom

Certification for ANSI BHMA Grade 1 Mortise Lock
