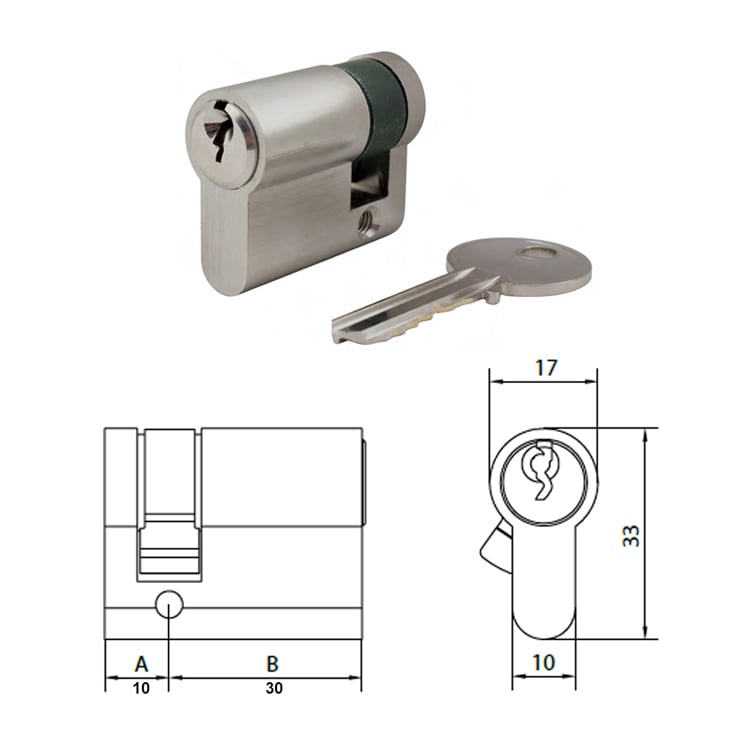

Aluminum single euro cylinder lock 10x30mm

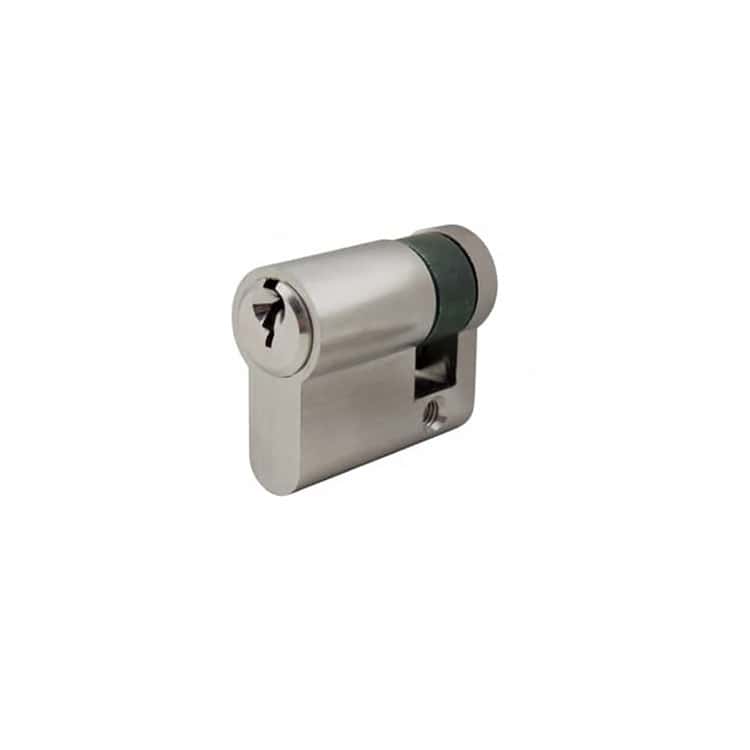

HUACI ECA aluminum single euro cylinder ECA1030 is constructed of aluminum housing and solid brass core with brass keys, it is suitable for storeroom, garage door, electric control box, switch gear box and someplace where people just need to lock the door from one side, ECA1030 is very economic in cost for light-duty use.

Specifications and Features
- Standard euro profile dimension according to DIN18252
- Aluminium cylinder housing and solid brass core

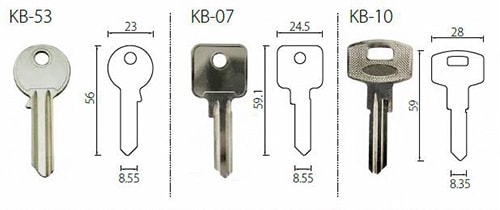

- Brass keys
- 5 pins design
- ECA1030 single euro cylinder has various lengths available for different door thickness
- Symmetrical and asymmetrical variants available to work with different lock installation positions

Finishes
- Satin Nickel (SN)
- Antique Brass (AB)
- Nickel Plated (NP)
- Silver Anodized (F1)

*Other finishes available upon request

About HUACI Euro Cylinder
HUACI’s profile cylinders are suitable for most of the European locks with EN standards, and they are compliance to EN1303:2005 standards for commercial/industrial standards.
