Door Lock/

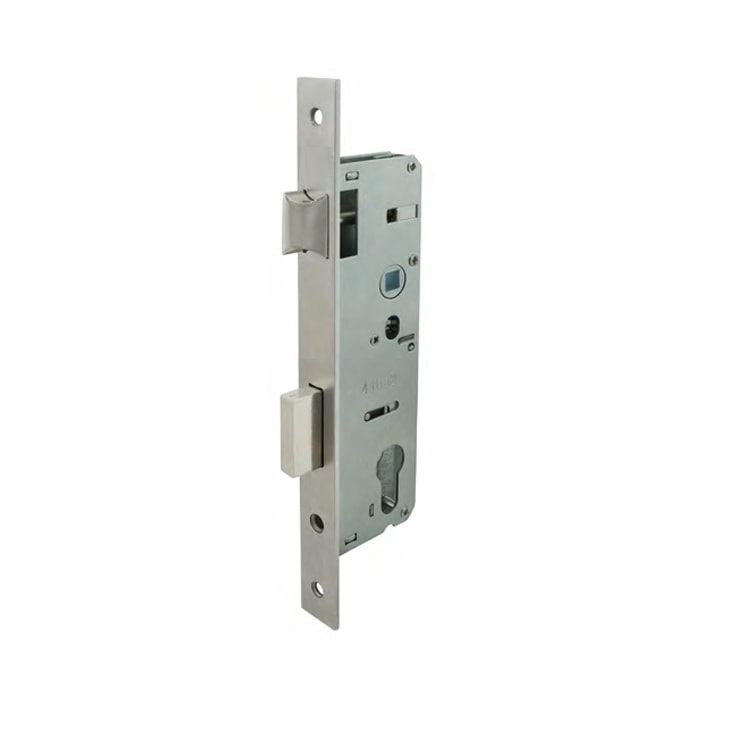

ML30 narrow mortice lock, sashlock for entry,85/92mm center

Model No.ML308501/ML309201
FunctionSashlock/Entry
Centers85mm/92mm
Backset Size20/25/30/35mm
Case SizeL: 173mm

W: 37/41.5/46.5/51.5mm

H: 16mm

Forend Size210mm*22mm



>> Get Complete Mortice Lock Catalog

Print It
  • Product Detail

ML308501 narrow mortice lock 85mm backset

Specifications and Features
- ML30 narrow mortice lock (sashlock) is available in 85 and 92mm centers, and backset in 20/25/30/35mm
- 8mm spindle follower
- Easy reversible latch bolt design (no tools required)
- Single throw solid deadbolt with 15mm projection
- HUACI narrow mortice lock is suitable for Sprung, and Un-Sprung handle
- Stainless Steel faceplate and strike in various width to fit different aluminum, or uPVC profile requirement
- Modular case across functions for rapid door prepping and installation
- Successfully type-tested internally for conformity to all of the requirement of EN12209:2003



Forend and Strike Finishes
Satin Stainless Steel
*Other finishes available upon request



>> Get the full list of mortice locks
