Euro Cylinder/

ECS2595 asymmetrical euro cylinder 95mm/25mm, custom long size

Model No.ECS2595
MaterialBrass
Total Length120mm(25/95), or custom
Lock Pins4 pins
TypeDouble profile cylinder
FunctionAnti-drill & Anti-pick
FinishSN/NP/BP/AB,Custom
StandardEN1303, EN1634, DIN18252
Keyway“S - keyway
Master KeyAvailable



>> Get Complete Euro Cylinder Catalog

Print It
  • Product Detail
  • Key Bow Options
  • Related Products
  • Standards and Certification

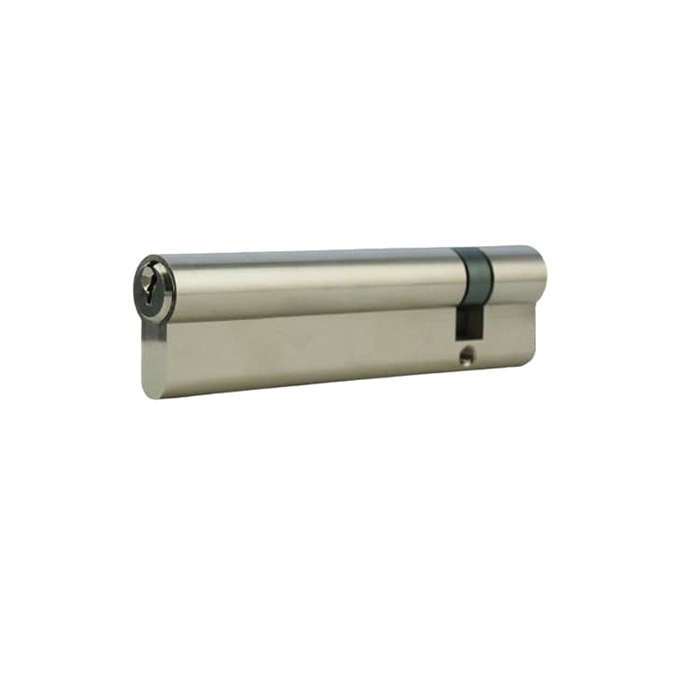

HUACI ECS2595 asymmetrical euro cylinder 95mm/25mm is made of solid brass, keyed operation from either side (inside or outside), and KD pack also available.

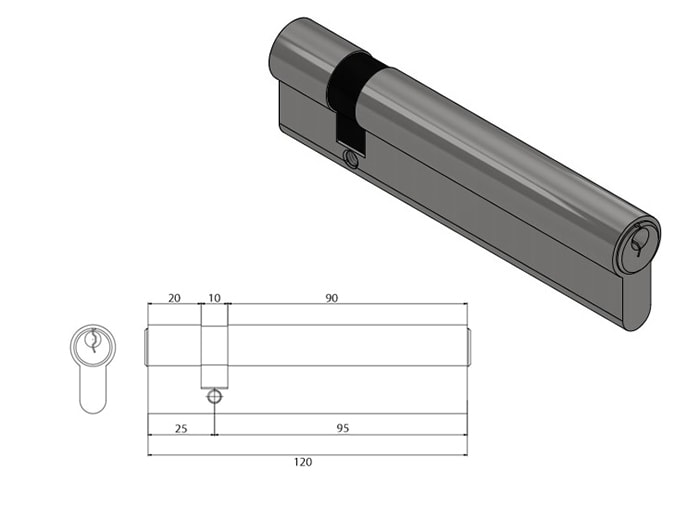

ECS2095 asymmetrical euro cylinder 95mm-1

Specifications and Features
- Standard euro profile dimension according to DIN18252
- Solid brass body and keys
- 4 pins constructions
- ECS2595 asymmetrical euro cylinder 95mm/20mm have various lengths available for different door thickness
- Symmetrical and asymmetrical variants available to work with different lock installation positions
- Optional anti-drill pins and anti-pick pins
- Enhanced attack resistance provided by HUACI security escutcheons
- Master keying service available upon request

GMK Euro Cylinder from HUACI Hardware

EN1303:2005 Classification

16010C52

Finishes

- Satin Nickel (SN)
- Brass Polished (BP)
- Nickel Plated (NP)
- Antique Brass (AB)

Various finishes available upon request for HUACI Euro Cylinders

Key Bow Options for for ECS euro cylinder

Related products for ECS euro cylinders

EN Exova-1303 2005 For Euro Cylinder
Successfully type-tested for conformity to all of the requirements of EN1303:2005
Exova EN1634-1 2014 For Euro CylinderSuccessfully passed 240-minutes fire test of metal door assemblies to EN1634-1:2014
Warrington For Euro CylinderAll tests performed independently and certified by Exova/Warringtonfire/ Warrington APT. Test reports and/or certificates are available on request
