DC2003 light duty commercial door closer for 60kg door mass



Model No.:DC2003
Material:Aluminum Alloy Pressure Die-Cast
Finish:Silver/White/Black/Gold, or custom
Standards:EN1154/EN1634/CE/Intertek/UL 10C

Print It
  • Product Detail
  • Standards and Certification

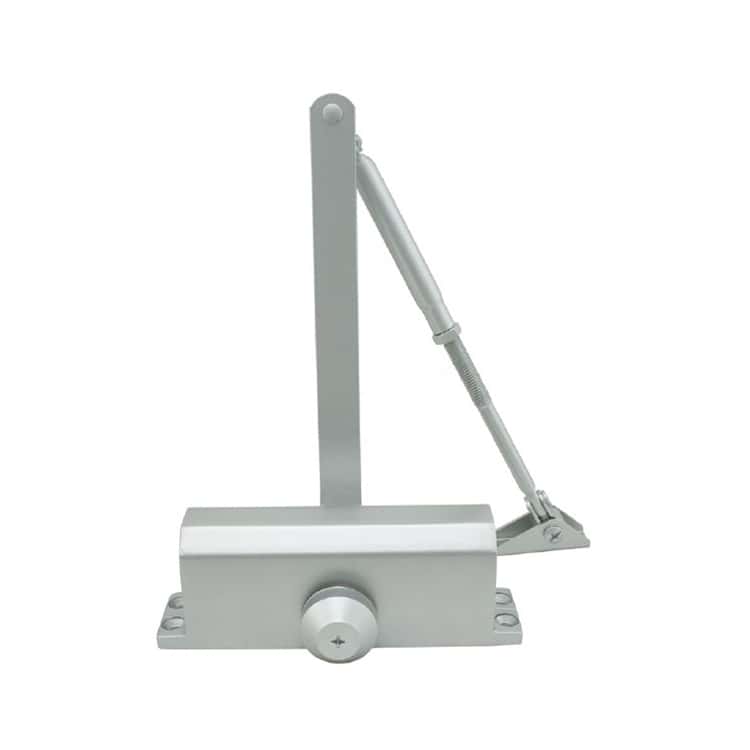

HUACI DC2003 commercial door closer is a cost-effective overhead door closer suitable for light-duty application. And for the material, it is aluminum alloy pressure die-cast.

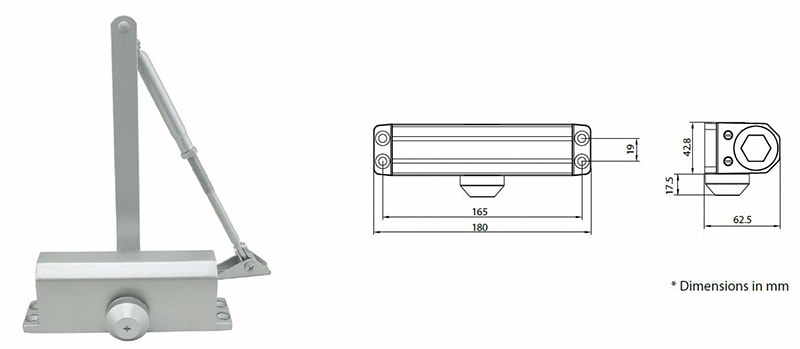

DC2003 light duty commercial door closer-size

DC2003 Commercial Door Closer Item List

Item No.Description
DC2003Door Closer with Standard Arm

Specification and Features

- Rack and Pinion Construction
Heat-treated rack and pinion immersed in high-grade oil to give a smooth action and minimum wear and tear
- Fixed Power Size EN3

DC2003EN3
Маx. Door Width (mm)950
Маx. Door Weight (kgs)60
Маx. Opening Angle180°

- Non-Handed
DC2003 can be universally fitted on both left and right-handed swing door

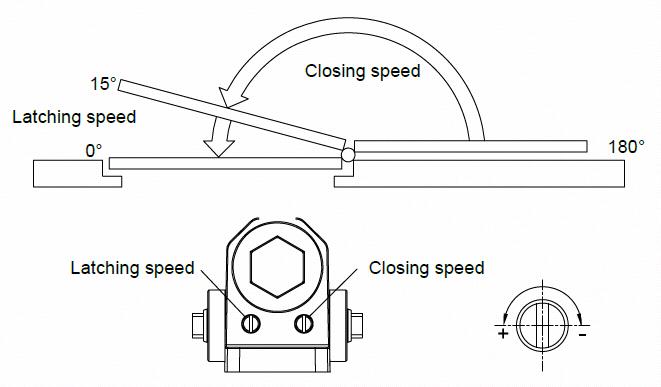

- Adjustable Latching and Closing Speed
DC2003 is supplied with hydraulic controlled valves to adjust latching and closing speed

DC2003 commercial door closer-speed adjutment

Finishes of DC2003 Door Closer

- AL
- White
- Black
- Gold
- Other finishes available on request

EN1154 Classification

483113



EN icon-HUACI Hardware FactorySuccessfully type-tested for conformity to all of the requirements of EN1154:1996/A1:2002/AC:2006 including the additional requirements for latch action/backcheck /adjustable closing force.
Fire test for metal door assembliesSuccessfully passed 60 minutes fire test of metal door assemblies to EN1634-1
CE Marking: CE Declaration of Conformity available on request
Intertek icon-HUACI Hardware FactoryAll tests performed independently and certified by Intertek Testing and Certification Ltd. in the UK
