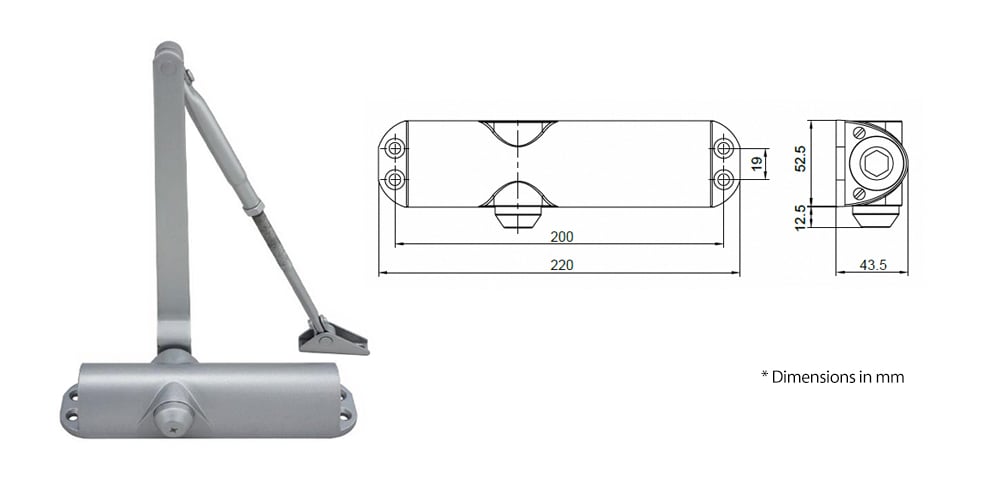

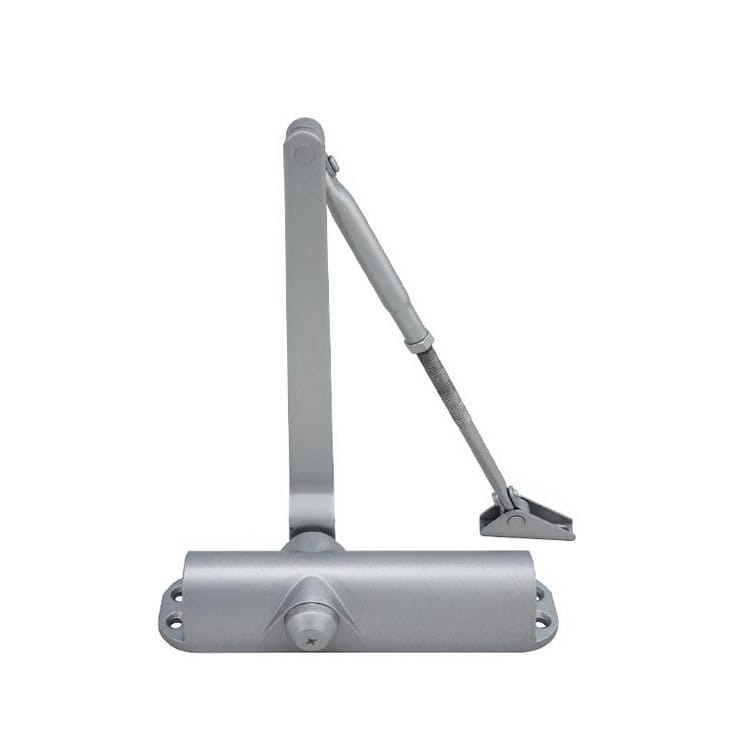

DC3003 automatic door closer for exterior/interior doors

HUACI DC3003 automatic door closer is a mainstream overhead door closer suitable for standard to medium weight doors for both interior or exterior application. For the material, it is aluminum alloy pressure die-cast.

DC3003 Automatic Door Closer Item List

Specification and Features

- Slim Design
DC3003 automatic door closer has a compact size with minimized projection allowing installation to the door’s adjacent return wall
- Full Rack and Pinion Construction
Heat-treated rack and pinion immersed in high-grade oil for smooth action and minimum wear and tear
- Selectable Power Size by Mounting Position (EN2, 3, 4)

- Non-Handed
DC3003 can be universally fitted on both left and right-handed swing doors
- Flexible Mounting Position
DC3003 automatic door closer can be installed on both pull and push side of the door, and the closer can be fitted on both door and frame

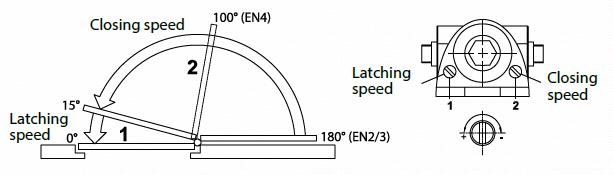

- Adjustable Latching and Closing Speed
DC3003 is supplied with hydraulic controlled valves to adjust latching and closing speed

Optional Features

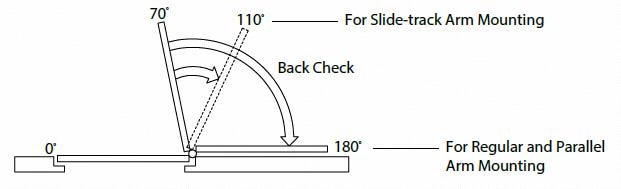

- Adjustable Backcheck
Backcheck feature set and adjusted by an independent valve to protect doorset from violent opening.

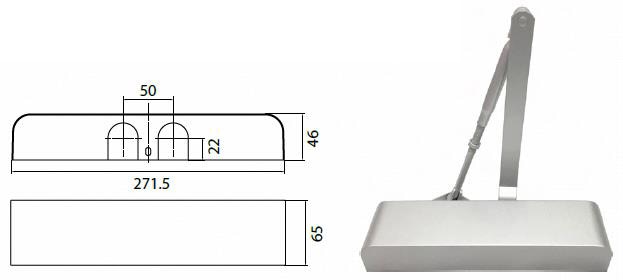

- Closer Cover: DCCV30
Metal cover available to cover mounting screw holes and create a clean appearance.

- Slide-track Arm Mounting
Slide-track arm mounting allows the minimum overall projection of closer from the door, which provides greater safety and smoother operation, and more appealing aesthetics.
- Door Hold-Open
The hold-Open arm allows the door to be held open at a preset angle

EN 1154 Classification

Finishes

- Silver
- White
- Black
- Gold
- Other finishes available on request
