Door Lock/

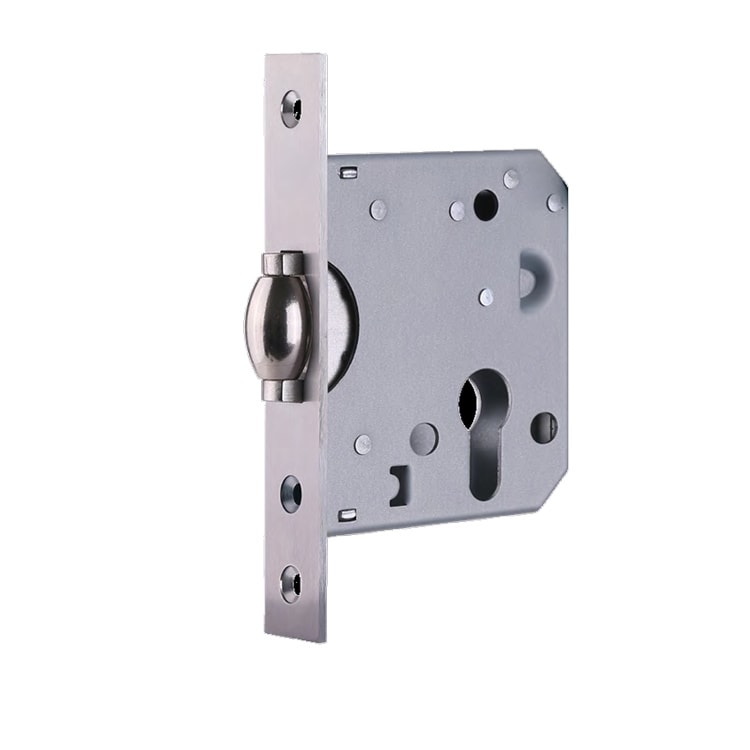

MLC107-55 roller bolt mortice dead lock with passage function

Model No.MLC107-55
Finish(Forend/Strike)Satin

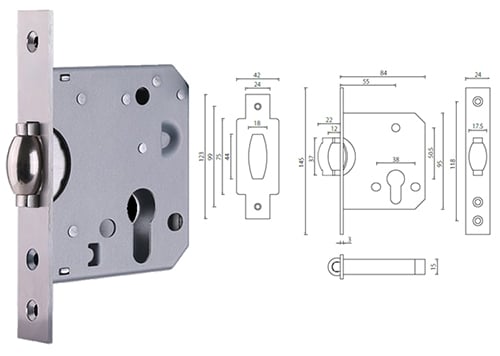

Backset size55mm
Follower8*8mm
Case Size(L*W*H)95*84*15mm
Forend/Plate Size118mm*20/22/23/24mm
FunctionDeadlock/Passage



>> Get Complete Mortice Lock Catalog

Print It
  • Product Detail

HUACI MIC107-55 roller bolt mortice dead lock with 55mm backset is suitable for passage access control, and the roller bolt can also work as dead lock.

MLC107-55 roller bolt mortice dead lock with passage function

Specifications and Features

- Backset in 55mm
- Can be used as passage or deadlock application
- Dead bolt function achieved with euro profile cylinder operation
- Roller Latch in stainless steel
- Stainless steel faceplate and strike in square and radius version
- MLC107-55 roller bolt mortice dead lock is compatible with bolt through escutcheons of 38mm centers




About HUACI Door Mortice Locks
HUACI manufacture and supply a comprehensive range of mortise lock, mortice latch, and related door lock hardware designed and made in China. The door lock items cover from mortise locks and latches, tubular latch locks, magnetic door locks, narrow mortice locks, to compact mortice locks, and lever mortice locks.

>> Full Catalog Download
>> Quick Inquiry and Quote
