Euro Cylinder/

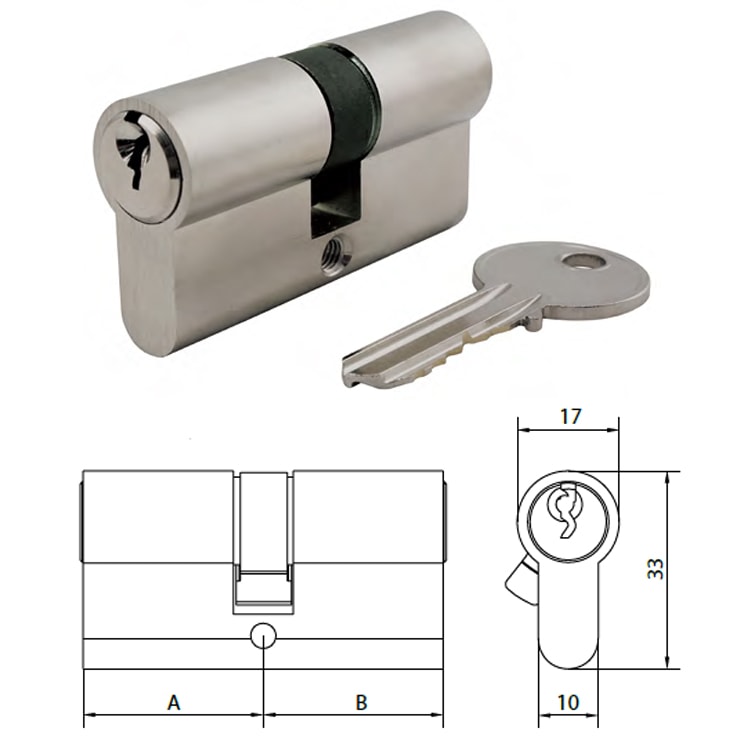

ECA3030 cheap aluminum door lock cylinder

Model No.ECA3030
MaterialAluminum + Brass
Total Length60mm(30/30), or custom
Lock Pins5 pins
TypeDouble profile cylinder
FinishSN/NP/BP/AB,Custom
Keyway“S - keyway
>> Get Complete Euro Cylinder Catalog



Print It
  • Product Detail
  • Key Bow Options

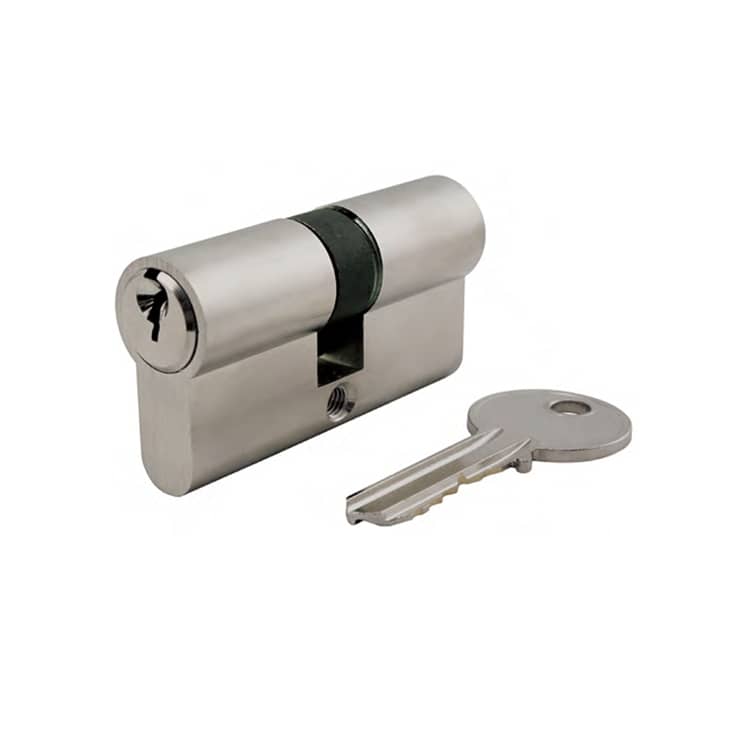

HUACI ECA aluminum door lock cylinder is constructed of aluminum housing and solid brass core with brass keys, it is the most popular and economic euro cylinder for light-duty use. Whether for application in the residential or commercial doors, we have options for you. For HUACI ECA series aluminum door lock cylinder, we have different models like double-sided, double profile cylinder with thumb-turn, single profile cylinder, privacy/bathroom cylinder with custom size upon your request.

cheap aluminum door lock cylinder

Specifications and Features
- Standard euro profile dimension according to DIN18252
- Aluminium cylinder housing and solid brass core
- Brass keys
- 5 pins design
- Various lengths available for different door thickness
- Symmetrical and asymmetrical variants available to work with different lock installation positions



Finishes
- Satin Nickel (SN)
- Antique Brass (AB)
- Nickel Plated (NP)
- Silver Anodized (F1)

*Other finishes available upon request

Various finishes available upon request for HUACI Euro Cylinders


About HUACI Euro Cylinder
HUACI’s profile cylinders are suitable for most of the European locks with EN standards, and they are compliance to EN1303:2005 standards for commercial/industrial standards.

>> Full Catalog Download
>> Quick Inquiry and Quote

Key Bow Options for ECA euro cylinders
