Euro Profile Cylinder Master Key With Custom Finish

SeriesECS
MaterialBrass
Total LengthCustom
TypeDouble /single profile/thumb turn
FinishSN/NP/BP/AB
StandardEN1303
KeywaySC Keyway

Print It
  • Product Detail
  • Dimensions
  • Tests and Standards
  • Certificates

Master key euro profile cylinder is a type of manageable euro cylinder, with keying ability, it is suitable for both commercial or residential applications with specific access requirements.

Specifications and Features

- Standard euro profile dimension according to DIN18252
- Solid brass material
- 5 or 6 pins constructions
- Master key Euro Profile DIN18252 mortice lock cylinder can be customized with various lengths available for different door thickness
- Symmetrical and asymmetrical variants are available to work with different lock installation positions
- Optional anti-drill pins and anti-pick pins
- Enhanced attack resistance provided by HUACI security escutcheons
- Master keying service available upon request

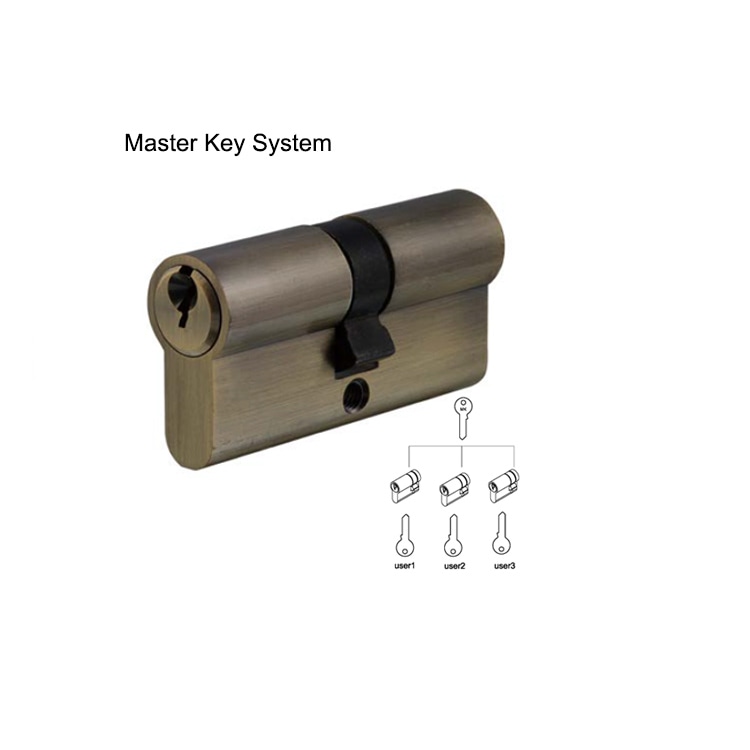

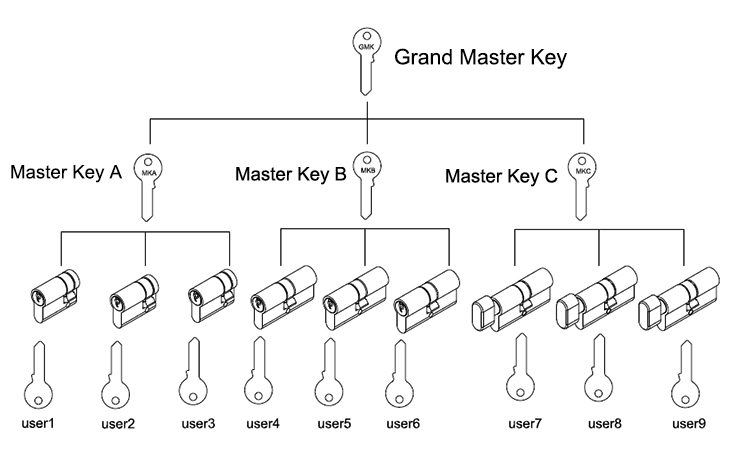

master keying system of HUACI euro profile cylinder

Finishes

- Satin Nickel (SN)

- Brass Polished (BP)

- Nickel Plated (NP)

- Antique Brass (AB)

Available Sizes For Different Models

Double Profile Cylinder

Application: Keyed operation from either side (inside or outside).

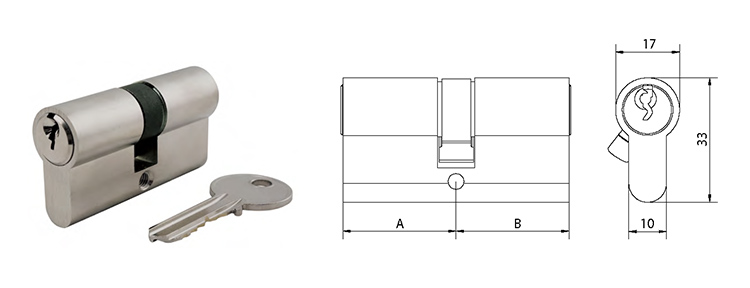

Double Profile Cylinder-ECS

Item No.A

(30-60MM)

B

(30-60MM)

ECS30303030
ECS30353035
ECS35353535
ECS40404040

Double Profile Cylinder with Thumb-turn

Application: Keyed operation from one side (outside) and thumb-turn operated from the other side (inside).

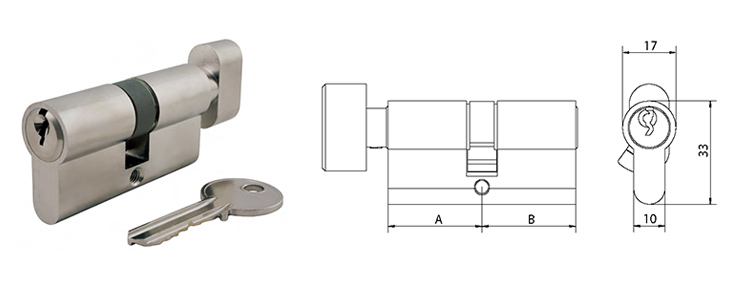

Double profile cylinder with thumb turn ECS

Item No.A

(30-60MM)

B

(30-60MM)

ECS3030TK3030
ECS3035TK3035
ECS3535TK3535
ECS4040TK4040

Single Profile Cylinder

Application: Keyed operation from one side (outside) only.

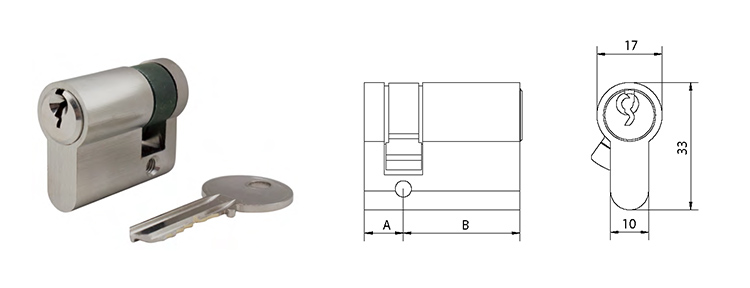

Asymmetrical Single profile cylinder ECS

Item No.AB

(30-60MM)

ECS10301030
ECS10351035
ECS10401045
ECS10451045

EN1303:2005 Classification

16010C52

Standards and Certification

EN Exova-1303 2005 For Euro CylinderSuccessfully type-tested for conformity to all of the requirements of EN1303:2005

Successfully passed 240-minutes fire test of metal door assemblies to EN1634-1:2014

Warrington For Euro Cylinder All tests performed independently and certified by Exova/Warringtonfire/ Warrington APT. Test reports and/or certificates are available on request
