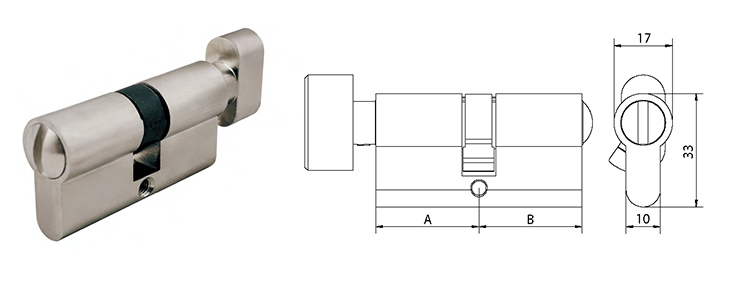

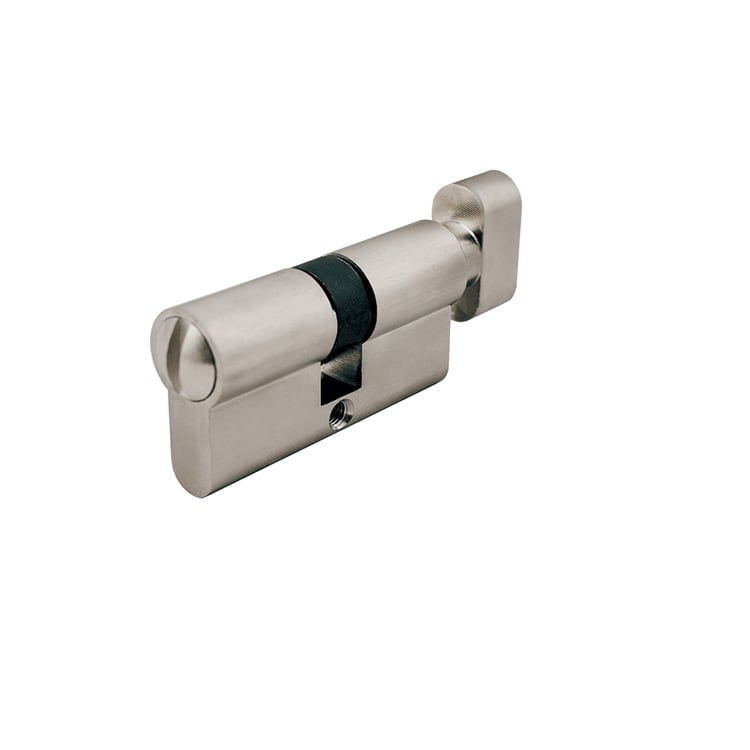

Euro Profile Privacy Cylinder with Thumb-turn ECS Series

Euro profile privacy cylinder with thumb-turn is suitable for both commercial or residential applications, with specific access requirements; For operation, thumb-turn operated from inside and the emergency release slot operated from outside.

Specifications and Features

- Standard euro profile dimension according to DIN18252
- Solid brass material
- 5 or 6 pins constructions
- Master key Euro Profile DIN18252 mortice lock privacy cylinder can be customized with various lengths, to fit different door thickness
- Symmetrical and asymmetrical variants are available to work with different lock installation positions
- Optional anti-drill pins and anti-pick pins
- Enhanced attack resistance provided by HUACI security escutcheons

Finishes

- Satin Nickel (SN) - Brass Polished (BP)

- Nickel Plated (NP) - Antique Brass (AB)

Available Sizes ForPrivacy/Bathroom Cylinder

Application: Thumb-turn operated from inside and emergency release slot operated from outside

EN1303:2005 Classification

Standards and Certification

Successfully type-tested for conformity to all of the requirements of EN1303:2005

Successfully passed 240-minutes fire test of metal door assemblies to EN1634-1:2014

All tests performed independently and certified by Exova/Warringtonfire/ Warrington APT. Test reports and/or certificates are available on request
