Euro Cylinder/

Master Key Euro Profile Door Cylinder

SeriesECS
MaterialBrass
Total LengthCustom
TypeDouble /single profile/thumb turn
FinishSN/NP/BP/AB
StandardEN1303
KeywaySC Keyway

Print It
  • Product Detail

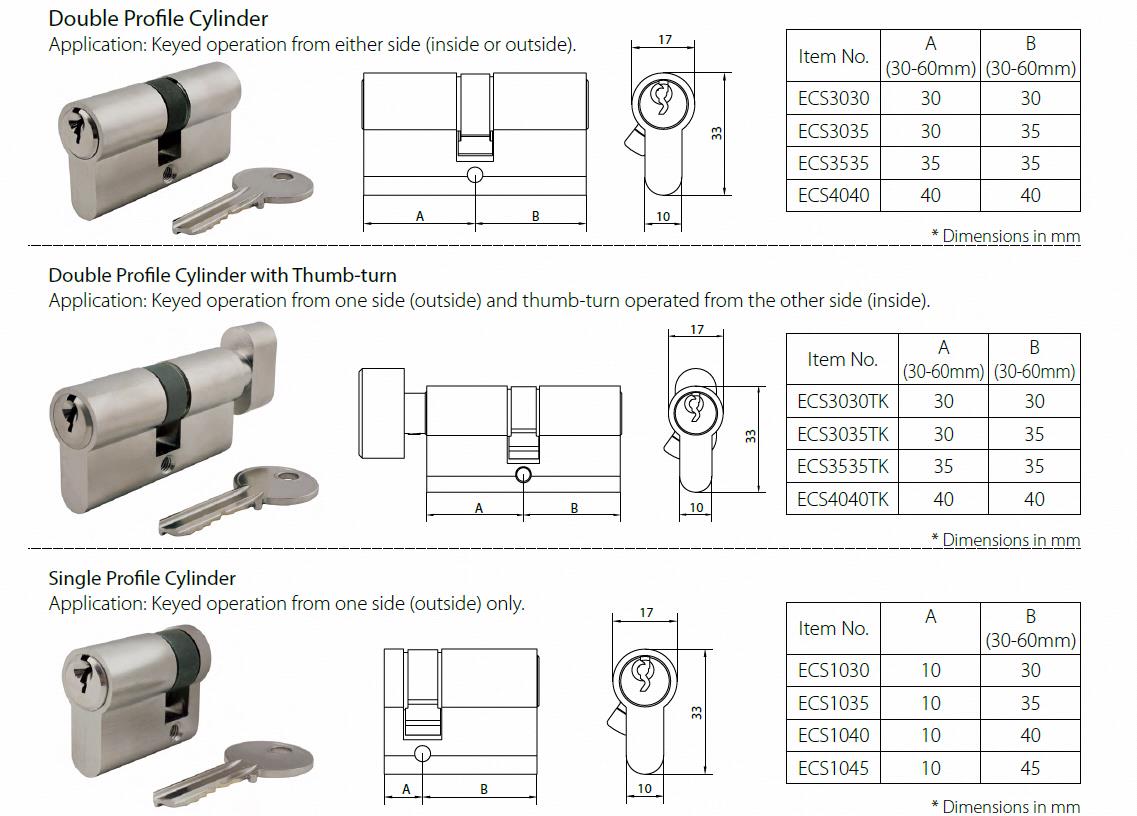

  • Dimensions
  • Tests and Standards

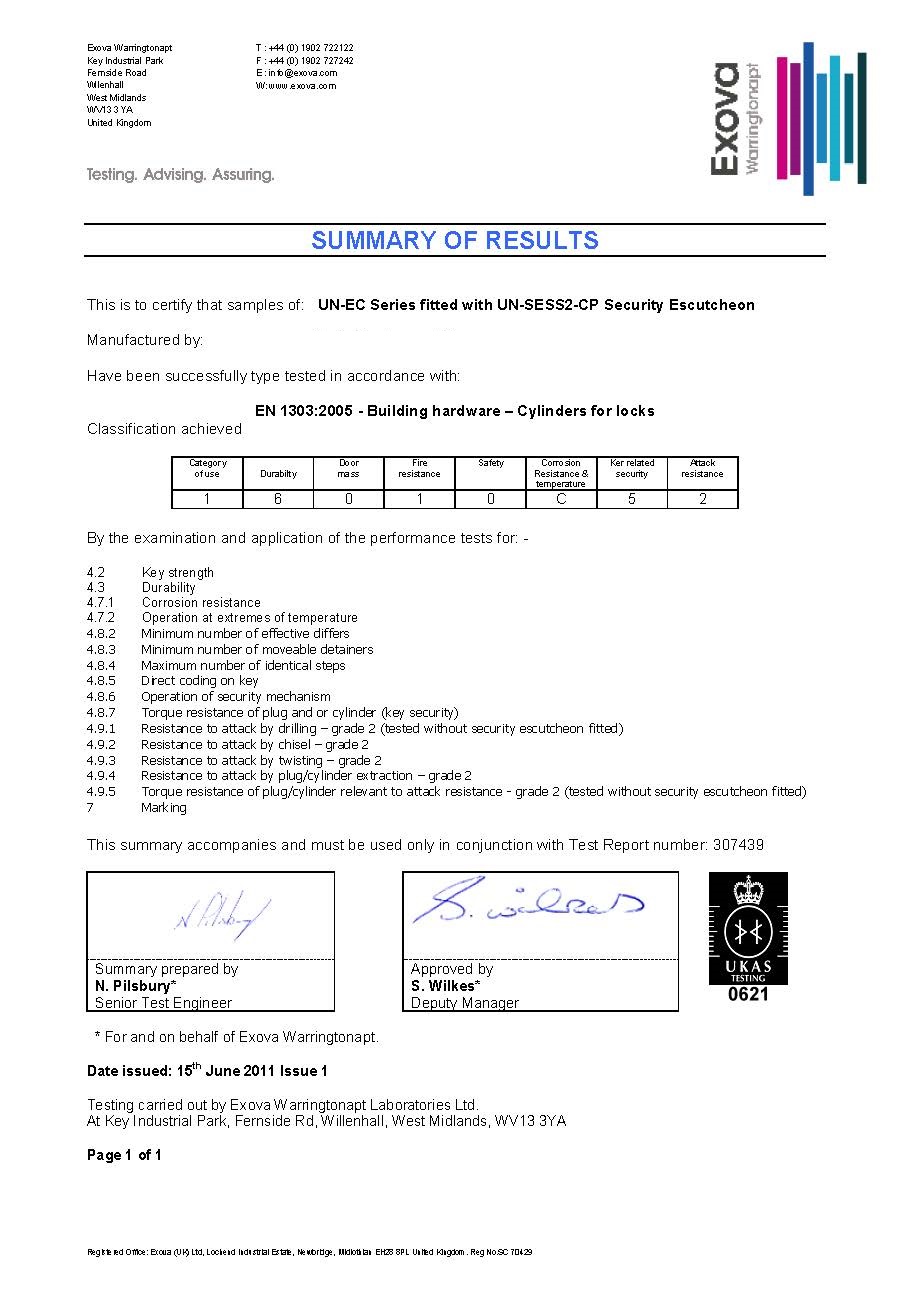

  • Certificates

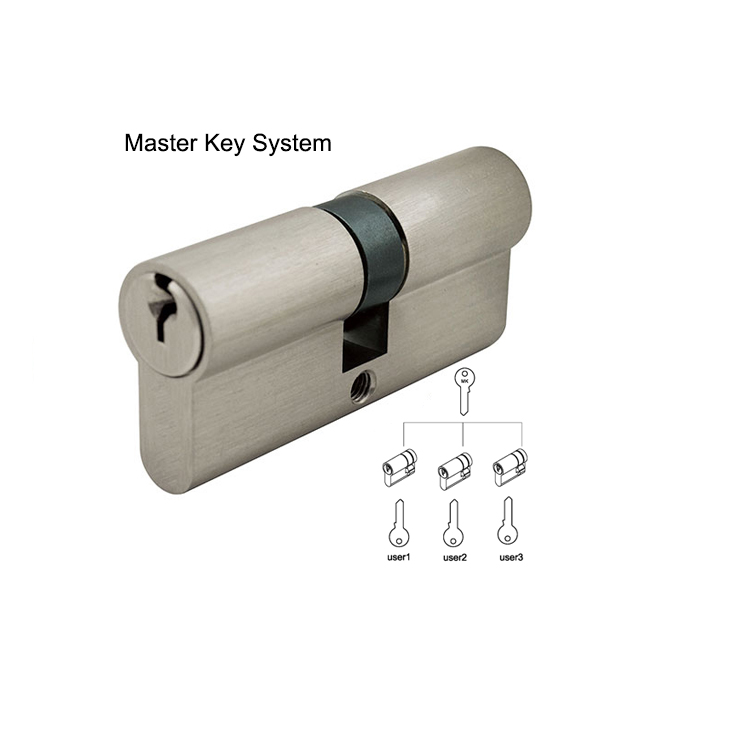

Master key euro profile door lock cylinder is a type of manageable euro cylinder, with keying ability, it is suitable for both commercial or residential applications with specific access requirements.

Specifications and Features

- Standard euro profile dimension according to DIN18252
- Solid brass material
- 5 or 6 pins constructions
- Master key Euro Profile DIN18252 mortice lock cylinder can be customized with various lengths available for different door thickness
- Symmetrical and asymmetrical variants are available to work with different lock installation positions
- Optional anti-drill pins and anti-pick pins
- Enhanced attack resistance provided by HUACI security escutcheons

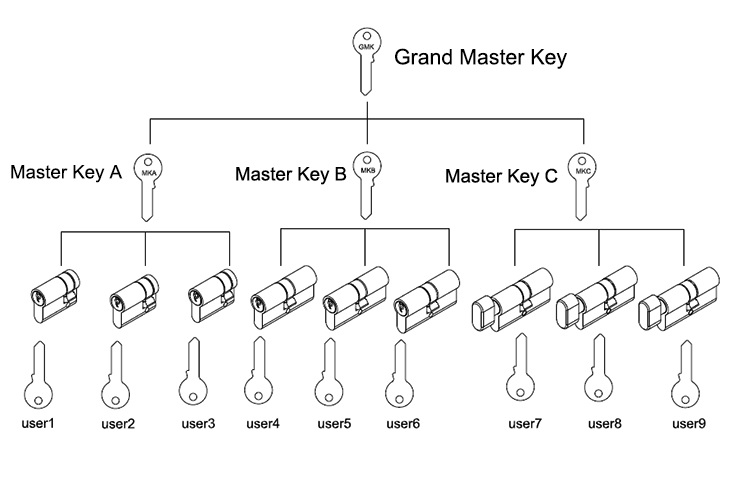

- Master keying service available upon request



























Finishes

- Satin Nickel (SN) - Brass Polished (BP)

- Nickel Plated (NP) - Antique Brass (AB)
