HAB10 series 180 degree concealed hinge with small size

HAB10 series 180 degree concealed hinge with small size

Model No.	HAB104, HAB106
Material	Zinc Alloy
Max. door weight	40kg - 60kgs
Min. door thickness	30mm, 40mm
Max. door width	1000mm
Max. door height	2100mm
Max. opening angle	180°

Print It

Product Detail
Adjustment

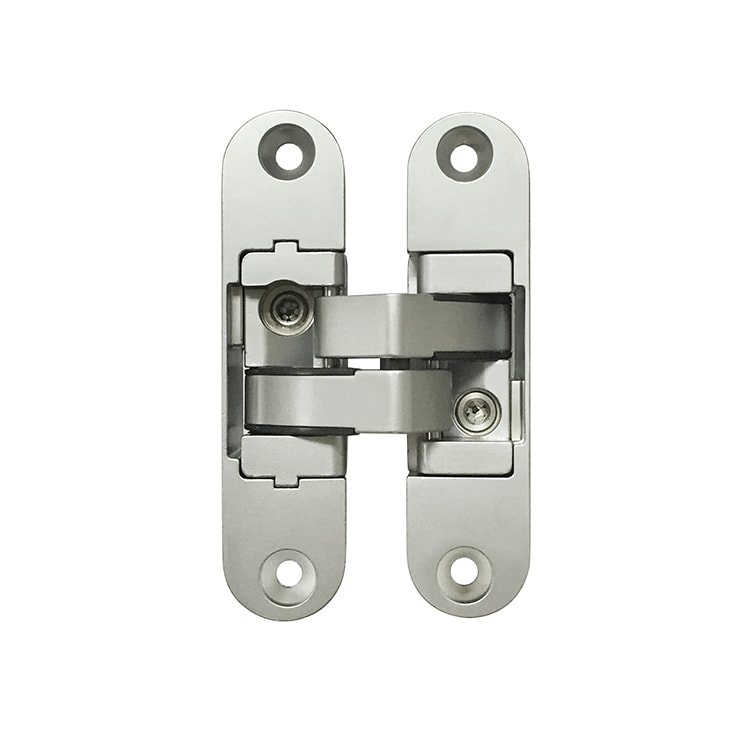

HAB10 series small size 180 degree concealed hinge is suitable for the door weight of 40kg~60kg.

HAB10 series 180 degree concealed hinge with small size-3

Specification and Features
- HAB10 180 degree concealed hinge is suitable for timber/wood doors and frame
- 3-dimensional adjustment for better alignment between door and frame
- Handed installation; handing to be specified when ordering
- Visible mounting screws

Available Finishes
- Satin Chrome (SC)
- Bright Chrome (BC)
- Satin Nickel (SN)
* Other finishes available on request

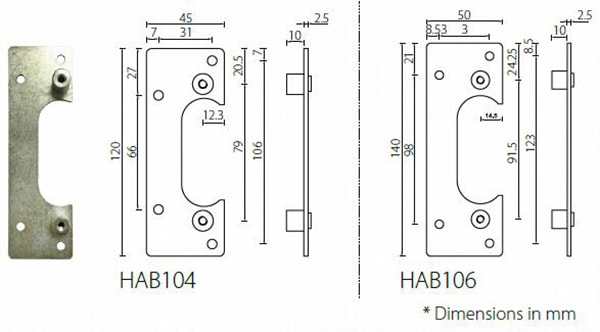

Mounting Plate

HAB10 series 180 degree concealed hinge with small size-mounting plate

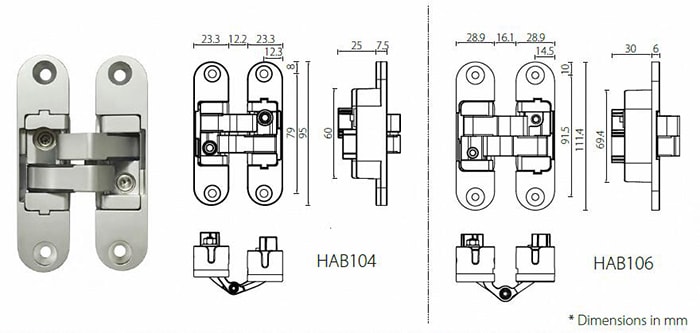

Technical Data

Items No.	Max. door weight (with 2 hinges)	Max. door thickness	Max. door width	Max. door height	Max. opening angle
HAB104	40kg	30mm	1000mm	2100mm	180°
HAB106	60kg	40mm	1000mm	2100mm	180°

Standards and Tests
- High Corrosion Resistance tested according to EN1670:2007
- 200,000 cycles tested on 80kg door mass according to EN1935: 2002

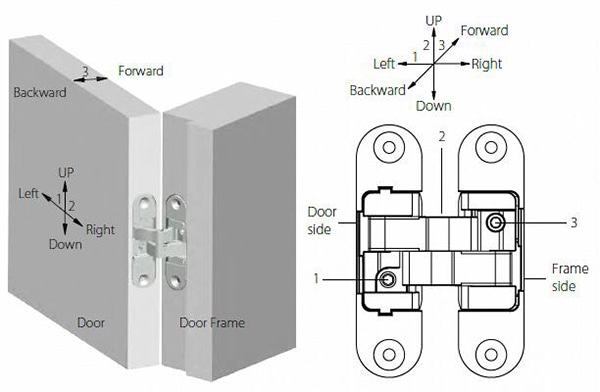

HAB10 series 180 degree concealed hinge with small size-adjustment

	HAB104	HAB106
1. Horizontal adjustment (X-Axis):	-1mm, +1mm	-1mm, +1mm
2. Vertical adjustment (Y-Axis):	-1mm, +1mm	-1.5mm, +1.5mm
3. Depth adjustment (Z-Axis):	-1mm, +1mm	-1mm, +1mm

* Please DO NOT make more than one full turn (Max. 360°) of adjustment screws
* Please make sure every hinge on the door is properly loosened before making the adjustment
* Improper adjustment of the hinge may affect the overall performance or cause damage to the hinges, door, or frame.
