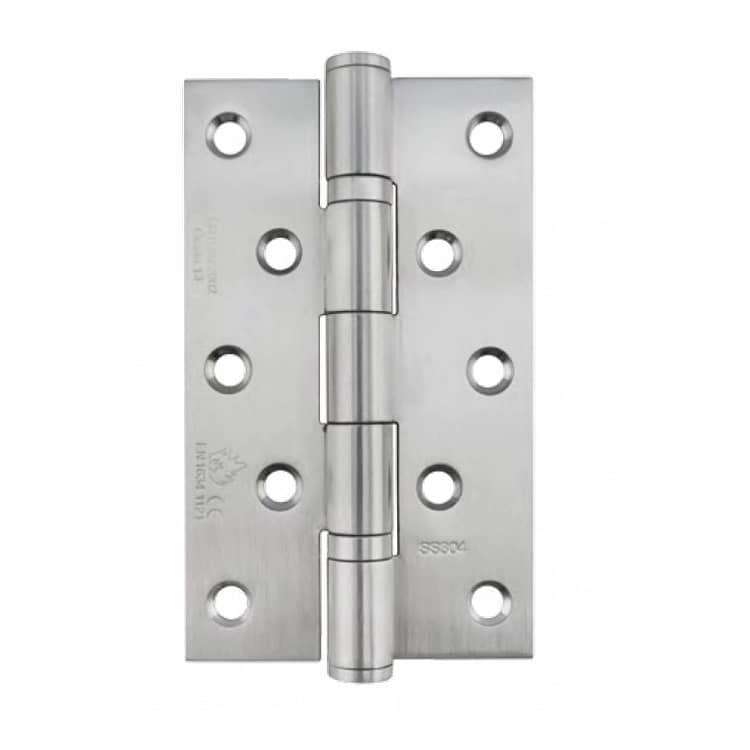

Stainless steel door hinge 5 - x 3 - x 3mm,ball bearing hinge, heavy duty use

Stainless steel door hinge 5 - x 3 - x 3mm ball bearing, heavy duty

Model No.	HB503030
Material	AISI304(AISI316)
Size	5 - x 3 - x 3mm
Thickness	3mm
Finish	US32D,US32,Satin PVD, Bright PVD
Corner Type	Square corner
Installation Method	Screw fixings
Max Door Weight	120KG
Ball Bearing	Yes
Fire Test	Yes
Certificate	Certifire, EN1935, EN1634, CE, etc.

>> Get Complete Door Hinge Catalog

HUACI ball bearing stainless steel door hinge HB503030 comes in the size of 5 - x 3 - x 3mm; And it is suitable for a wide range of door thickness/weight(up to 120kg).

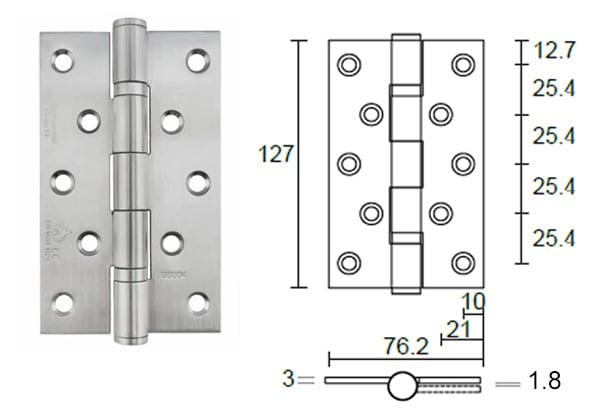

heavy duty stainless steel door hinge HB503030

Specifications and Features

- AISI304 stainless steel material for high corrosion resistance (AISI316 material available on request)
- Hardened Ball Bearings
- Square and radius corner version available
- Template drilled for easy installation and retrofitting purpose
- Designed for metal or timber fire rate door set
- Dogbolt version optional for enhanced security
- Stainless steel door hinge HB503030 is suitable for a wide range of door thickness/weight (up to 120kg)
- Supplied with CSK stainless steel screws

EN1935:2002 Classifications

Standard Hinges

Dogbolt Hinges

*Provided they are fitted in accordance with the guidelines detailed in IFCA/06252.

Finishes

- Satin Stainless Steel (US32D/630)
- Polished Stainless Steel (US32/629)
- Satin PVD Titanium
- Bright PVD Titanium

*Other finishes available on request

HUACI Mortice Door Hinge

HUACI offers a standard range of hinges as well as the capability to produce hinges to the customer’s specifications.
HUACI’s stainless steel butt hinges have been tested to EN1935: 2002 (Grade 13/Grade 10) and also fire rated to EN1634-1.

>>Full Catalog Download
>>Quick Inquiry and Quote

	Successfully type-tested for conformity to all requirements of EN1935: 2002
	Successfully passed and exceeded 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014
	CE Declaration of Conformity available upon request
	HUACI HB series hinges are approved by Certifire.* Certifire No. CF735
	Successfully passed 180-minutes fire test of fire-resistant door and frame to UBC 7-2 (1997): NFPA252 (2008): UL 10 (b) Revision 1 (2009): UL 10 (c) (2009: CAN/ULC S104 (2010): NFPA 252 (2012),Certificate No. WH13-18485801
	All EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT. Test report/certificate available upon request.
	All UL/UBC/NFPA tests performed independently and certified byIntertek Testing Services NA, Inc.
* Certifire is an independent third party certification scheme that assures performance, quality, and traceability of fire protection products.
