Door Hinge/

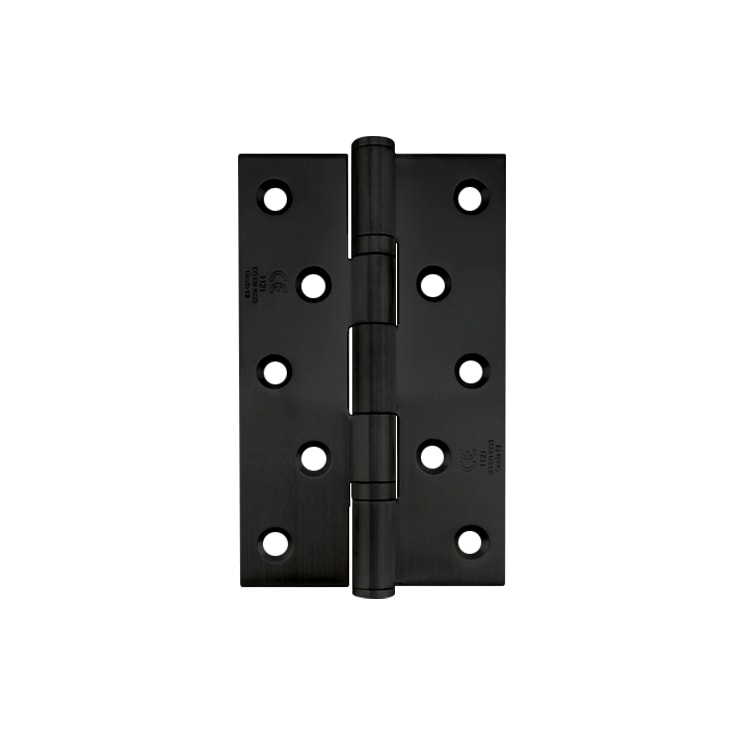

Stainless steel matte black door hinge HB503030-BK

Model No.HB503030-BK
MaterialAISI304(AISI316)
Size5 - x 3 - x 3mm
Thickness3mm
FinishMatte black, or custom
Corner TypeSquare corner
Installation MethodScrew fixings
Max Door Weight120KG
Ball BearingYes
Fire TestYes
CertificateCertifire, EN1935, EN1634, CE, etc.

Print It
  • Product Detail
  • Tests and Standards

As a black door hinge manufacturer & supplier with consistent quality, HUACI supply various qualified mortice door hinge with OEM service.

Our ball-bearing stainless steel black door hinge HB503030-BK comes in the size of 5 - x 3 - x 3mm; And it is suitable for a wide range of door thickness/weight(up to 120kg).

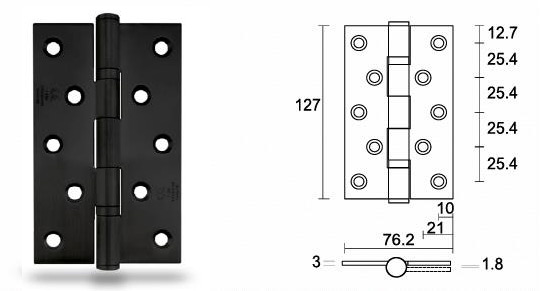

HB503030 black-butt-hinge-matte-black-door-hinge-manufacturer

Specifications and Features

- AISI304 stainless steel material for high corrosion resistance (AISI316 material available on request)
- Hardened Ball Bearings
- Square and radius corner version available
- Template drilled for easy installation and retrofitting purpose
- Designed for metal or timber fire rate door set
- Dogbolt version optional for enhanced security
- Stainless steel door hinge HB503030-BK black door hinge is suitable for a wide range of door thickness/weight (up to 120kg)
- Supplied with CSK stainless steel screws



EN1935:2002 Classifications

Standard Hinges

4761*14013

Dogbolt Hinges

4761*14013

*Provided they are fitted in accordance with the guidelines detailed in IFCA/06252.



Other Finishes Available

- Satin Stainless Steel (US32D/630)
- Polished Stainless Steel (US32/629)
- Satin PVD Titanium
- Bright PVD Titanium

*Other finishes available on request




HUACI Mortice Door Hinge

As a door hinge manufacturer, HUACI offers a standard range of hinges as well as the capability to produce custom ones.
What is more, HUACI’s stainless steel butt hinges have been tested to EN1935: 2002 (Grade 13/Grade 10), and also fire rated to EN1634-1.

>Full Catalog Download
>>Quick Inquiry and Quote

If you are looking for a black door hinge manufacturer, inquire HUACI now!

Successfully type-tested for conformity to all requirements of EN1935: 2002
Successfully passed and exceeded 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014
CE Declaration of Conformity available upon request
HUACI HB series hinges are approved by Certifire.* Certifire No. CF735
Successfully passed 180-minutes fire test of fire-resistant door and frame to UBC 7-2 (1997): NFPA252 (2008): UL 10 (b) Revision 1 (2009): UL 10 (c) (2009: CAN/ULC S104 (2010): NFPA 252 (2012),Certificate No. WH13-18485801
All EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT. Test report/certificate available upon request.
All UL/UBC/NFPA tests performed independently and certified byIntertek Testing Services NA, Inc.
* Certifire is an independent third party certification scheme that assures performance, quality, and traceability of fire protection products.
