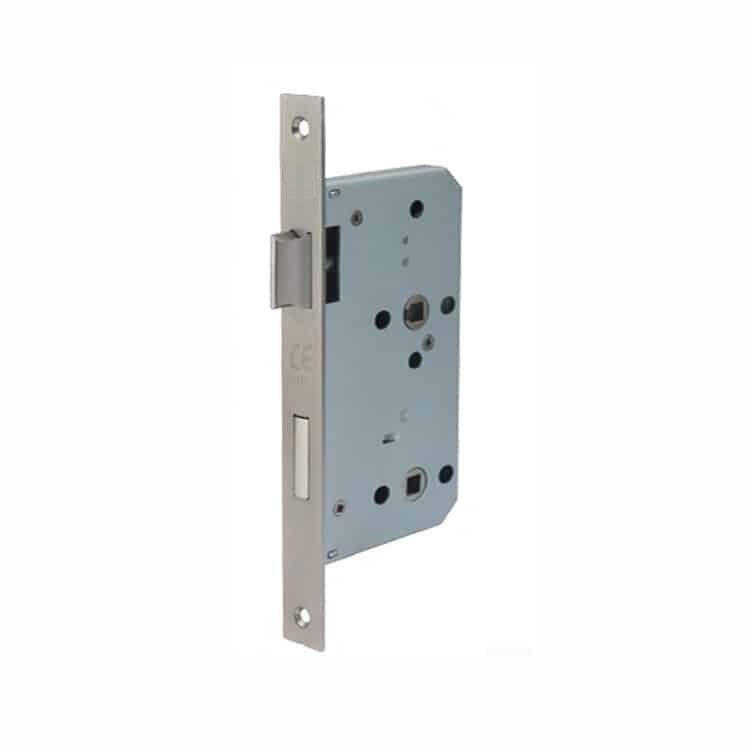

ML107205 bathroom mortice lock for privacy

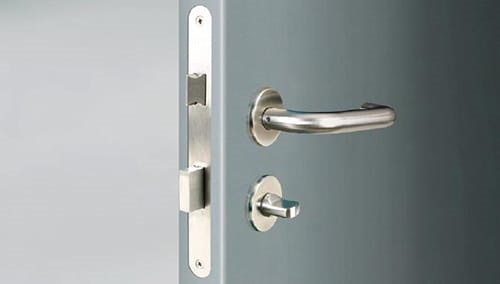

HUACI ML107205 bathroom mortice lock is suitable for the bathroom door with deadbolt locking privacy. What is more, emergency unlocking is provided by the coin release slot.

Specifications and Features

- ML107205 bathroom mortice lock has a modular case across functions for rapid door prepping and installation

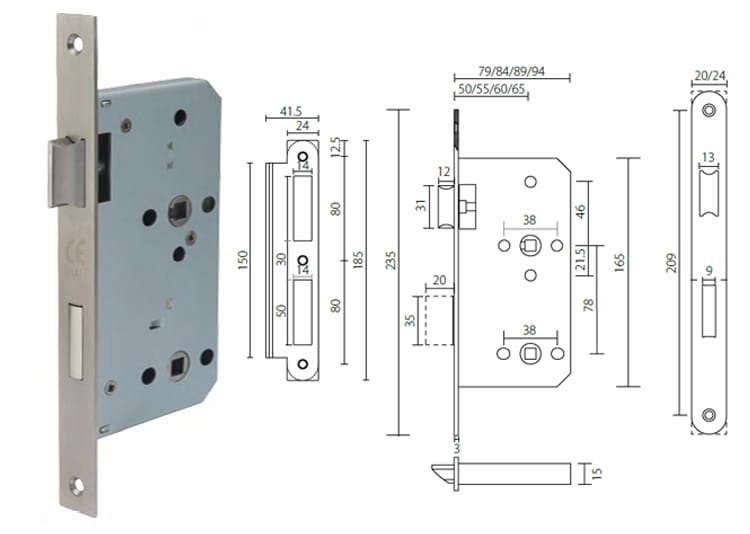

- 72mm centers, backset in 50/55/60/65mm
- 8mm follower with spindle gripping function
- ML107205 bathroom privacy lockset has a reversible latch bolt in solid stainless steel
- Double throw deadbolt in solid stainless steel with 20mm projection
- Suitable for sprung and most un-sprung lever furniture
- Stainless steel faceplate and strike in square and radius version (radius version improves door prep efficiency with machine routing)
- Compatible with bolt through furniture and escutcheons of 38mm centers

EN12209:2003 Classification

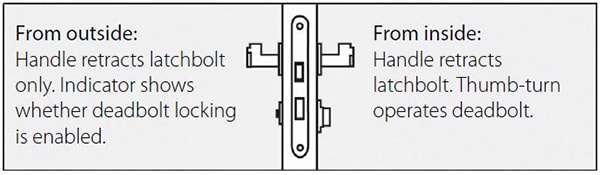

Illustration

Forend and Strike Finishes

Satin

The matching finish on latch bolt and deadbolt *Other finishes available upon request

Trim Options:

Lever Options

Suitable with any HUACI lever design

* Please refer to HUACI Lever Handle catalog for more detail on Lever and Trim options
