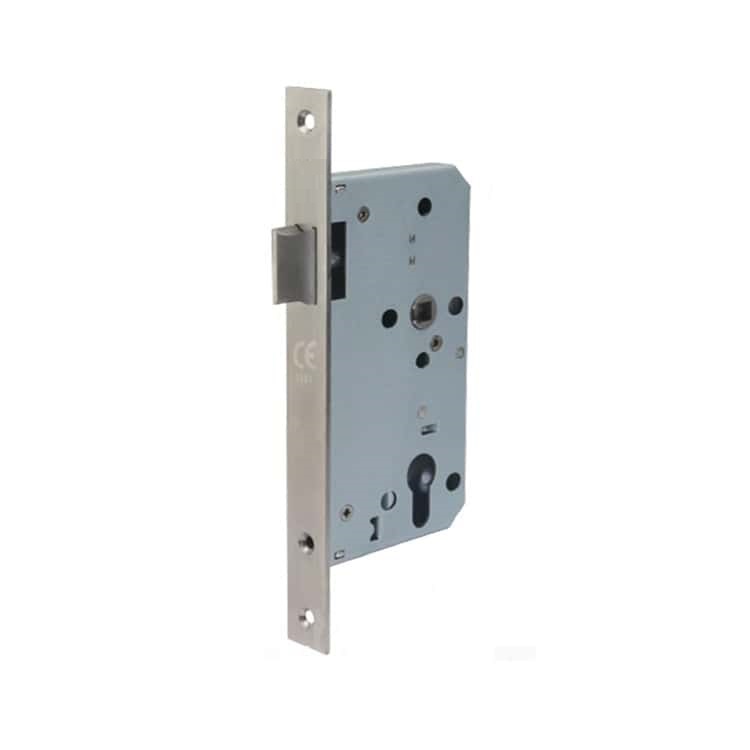

ML107204 mortice night latch with cylinder for latched doors

HUACI ML107204 mortice night latch is suitable for the latched door in storerooms. With the cylinder, it has key-operated access from outside, and handle access from inside.

Specifications and Features

- ML107204 mortice night latch has a modular case across functions for rapid door prepping and installation

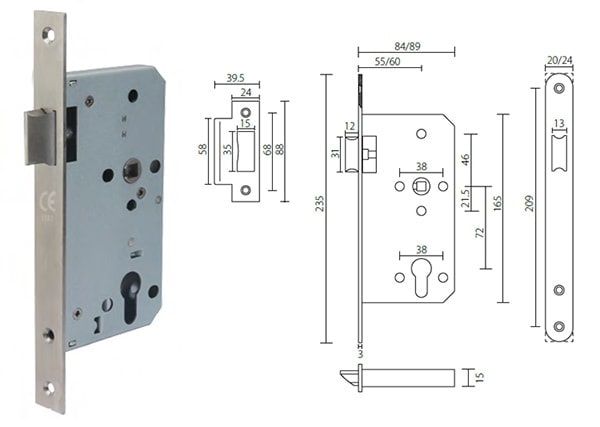

- 72mm centers, backset in 50/60mm
- 8mm follower with spindle gripping function
- ML107204 mortice night latch for storeroom has a reversible latch bolt in solid stainless steel
- Double throw deadbolt in solid stainless steel with 20mm projection
- Suitable for sprung and most un-sprung lever furniture
- Stainless steel faceplate and strike in square and radius version (radius version improves door prep efficiency with machine routing)
- Compatible with bolt through furniture and escutcheons of 38mm centers

EN12209:2003 Classification

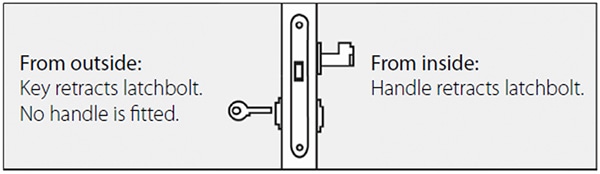

Illustration

Forend and Strike Finishes

Satin

The matching finish on latch bolt and deadbolt *Other finishes available upon request

Trim Options:

Lever Options

Suitable with any HUACI lever design

* Please refer to HUACI Lever Handle catalog for more detail on Lever and Trim options

About HUACI Door Mortice Locks
HUACI manufacture and supply a comprehensive range of mortise lock, mortice latch, and related door lock hardware designed and made in China. The door lock items cover from mortise locks and latches, tubular latch locks, magnetic door locks, narrow mortice locks, to compact mortice locks, and lever mortice locks.
