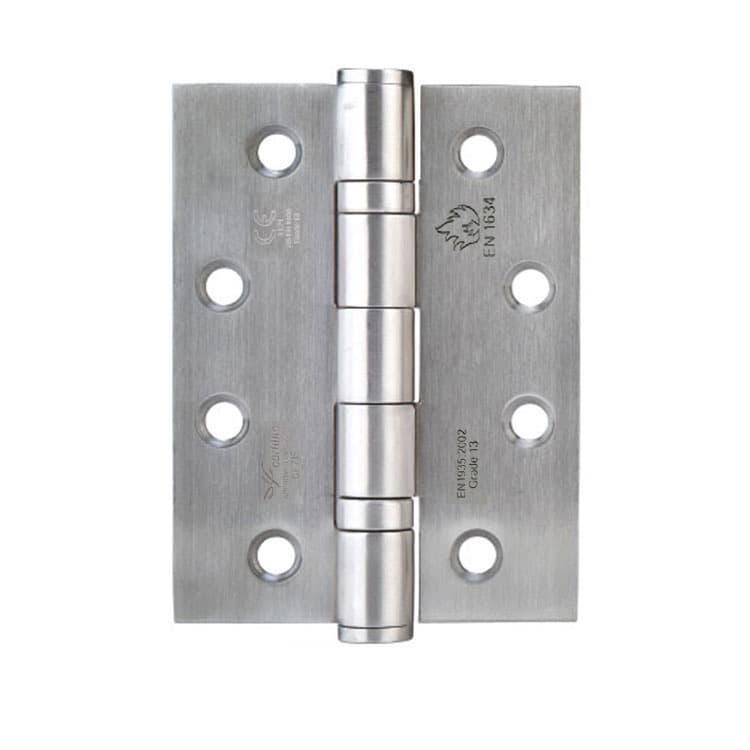

Grade 13 Euro Mortise Door Hinge

HUACI Grade 13 ball-bearing euro mortise commercial door hinges are perfect for the high-frequency application, where potential misuse or deliberate abuse likely takes place.

Specifications and Features

- AISI304 stainless steel material for high corrosion resistance (AISI316 material available on request)
- Hardened Ball Bearings
- Square and radius corner version available
- Template drilled for easy installation and retrofitting purpose
- Designed for metal or timber fire rate door set
- Dogbolt version optional for enhanced security
- Grade 13 ball-bearing euro mortise commercial door hinges are suitable for a wide range of door thickness/weight (up to 120kg)
- Supplied with CSK stainless steel screws

EN1935:2002 Classifications

Standard Hinges

Dogbolt Hinges

*Provided they are fitted in accordance with the guidelines detailed in IFCA/06252.

Finishes

- Satin Stainless Steel (US32D/630)

- Polished Stainless Steel (US32/629)

- Satin PVD Titanium

- Bright PVD Titanium

*Other finishes are available on request

HUACI Mortice Door Hinge

As a door hinge factory, HUACI offers a standard range of hinges as well as the capability to produce hinges to the customer’s specifications.
HUACI’s stainless steel butt hinges have been tested to EN1935: 2002 (Grade 13/Grade 10) and also fire rated to EN1634-1.

>>Full Catalog Download
>>Quick Inquiry and Quote

Standards and Certification

Successfully type-tested for conformity to all requirements of EN1935: 2002

Successfully passed and exceeded 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014

CE Declaration of Conformity available upon request

HUACI HB series hinges are approved by Certifire.* Certifire No. CF735

Successfully passed 180-minutes fire test of fire-resistant door and frame to UBC 7-2 (1997): NFPA 252 (2008): UL 10 (b) Revision 1 (2009): UL 10 (c) (2009: CAN/ULC S104 (2010): NFPA 252 (2012), Certificate No. WH13-18485801

All EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT.

Test report/certificate available upon request.

All UL/UBC/NFPA tests performed independently and certified by Intertek Testing Services NA, Inc.

* Certifire is an independent third party certification scheme that assures performance, quality, and traceability of fire protection products.

EN1935:2002 Classifications

Standard Hinges

Dogbolt Hinges

*Provided they are fitted in accordance with the guidelines detailed in IFCA/06252.
