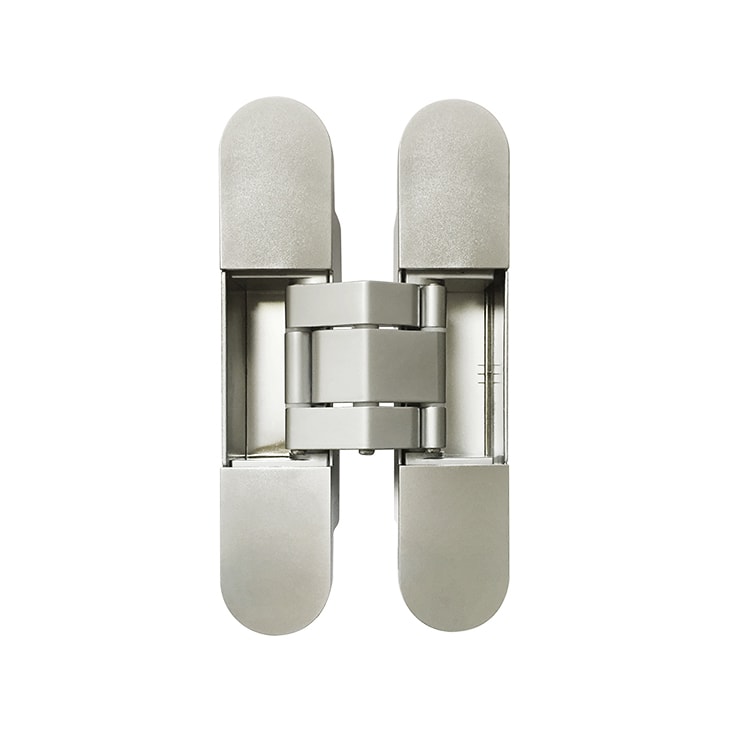

HAC206 adjustable 3D concealed hinge for 60kg commercial & residential doors

Model No.HAC206
MaterialZinc Alloy
Max. door weight60kgs
Min. door thickness38mm
Max. door width1000mm
Max. door height2100mm
Max. opening angle180°

Print It
  • Product Detail

HUACI adjustable 3D concealed hinge HAC206 is suitable for commercial and residential doors less than 60kg.

HAC206 adjustable 3D concealed hinge-3

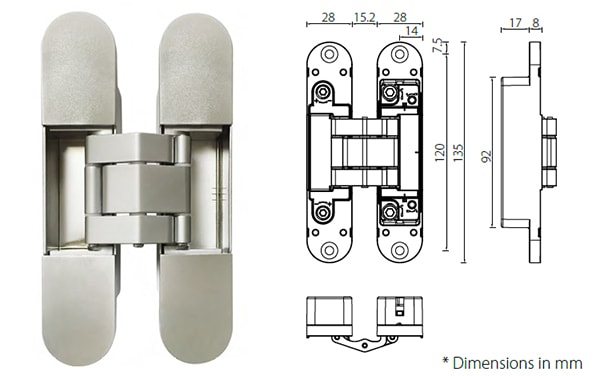

Specification and Features
- Material: zinc alloy
- 3D concealed hinge HAC206 is suitable for timber/wood, steel, and aluminum frame doors
- Wide 3-dimensional adjustment tolerance for more flexible installation
- Non handled the installation
- Matching cover plate for concealed fixing

Available FinishesTechnical Data
- Satin Chrome (SC)
- Bright Chrome (BC)
- Satin Nickel (SN)
* Other finishes available on request
- Max. door weight (with 2 hinges): 60kgs
- Min. door thickness: 38mm
- Max. door width: 1000mm
- Max. door height: 2100mm
- Max. opening angle: 180°



Standards and Tests
- High Corrosion Resistance tested according to EN1670:2007
- 200,000 cycles tested on 80kg door mass according to EN1935: 2002

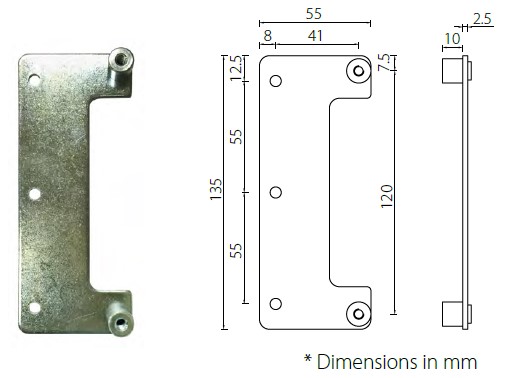

Mounting Plate

HAC206 adjustable 3D concealed hinge-mounting plate

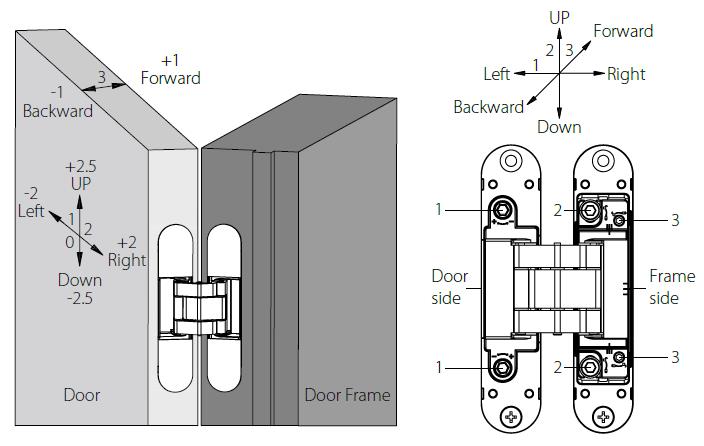

Adjustment

HAC206 adjustable 3D concealed hinge-adjustment

1. Horizontal adjustment (X-Axis): (-2mm, +2mm)
2. Vertical adjustment (Y-Axis): (-2.5mm, +2.5mm)
3. Depth adjustment (Z-Axis): (-1mm, +1mm)

* Please DO NOT make more than one full turn (Max. 360°) of adjustment screws
* Please make sure every hinge on the door is properly loosened before making the adjustment
* Improper adjustment of the hinge may affect the overall performance or cause damage to the hinges, door, or frame.
