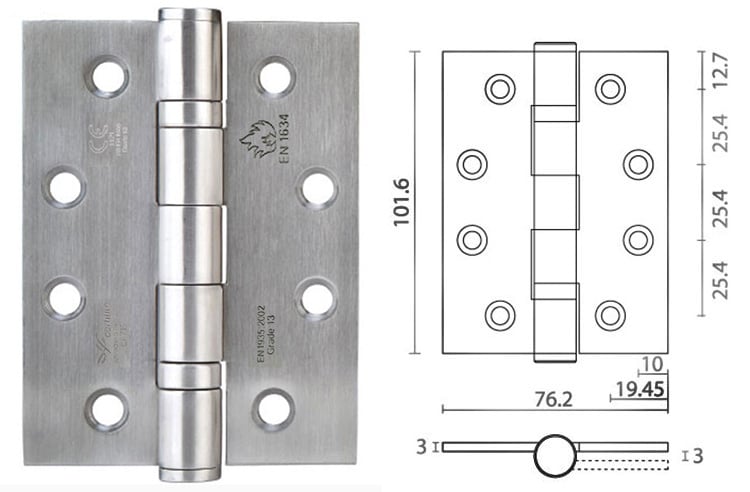

HB403030 ball bearing fire rated butt hinge for heavy duty use

Model No.HB403030
MaterialAISI304(AISI316)
Size4 - x 3 - x 3mm
Thickness3mm
FinishUS32D,US32,Satin PVD, Bright PVD
Corner TypeSquare corner
Installation MethodScrew fixings
Max Door Weight120KG
Ball BearingYes
Fire TestYes
CertificateCertifire, EN1935, EN1634, CE, etc.
>> Get Complete Door Hinge Catalog

Print It
  • Product Detail
  • Tests and Standards

HUACI HB403030 fire-rated ball bearing butt hinge is perfect for high-frequency usages, like public buildings and commercial offices, where potential misuse or deliberate abuse likely takes place.

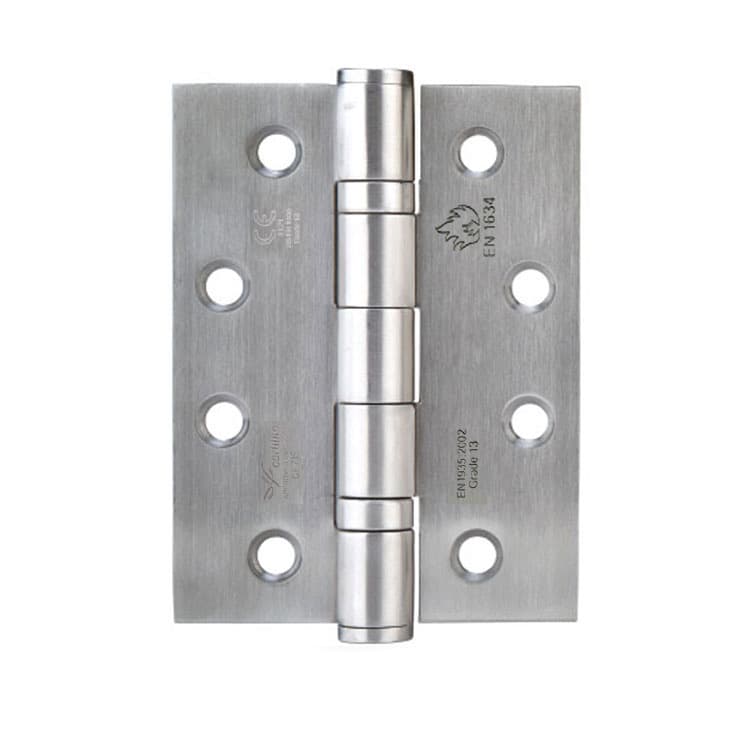

ball bearing fire rated butt hinge HB403030

Specifications and Features

- AISI304 stainless steel material for high corrosion resistance (AISI316 material available on request)
- Hardened Ball Bearings
- Square and radius corner version available (radius corner version improves the door prep precision and efficiency with machined routing)
- Template drilled for easy installation and retrofitting purpose
- Designed for metal or timber fire rate door set
- Dogbolt version optional for enhanced security
- HB403030 fire-rated ball bearing butt hinge is suitable for a wide range of door thickness/weight (up to 120kg)
- Supplied with CSK stainless steel screws



EN1935:2002 Classifications

Standard Hinges

4761*14013

Dogbolt Hinges

4761*14013

*Provided they are fitted in accordance with the guidelines detailed in IFCA/06252.



Finishes

- Satin Stainless Steel (US32D/630)
- Polished Stainless Steel (US32/629)
- Satin PVD Titanium
- Bright PVD Titanium

*Other finishes available on request




HUACI Mortice Door Hinge

HUACI offers a standard range of hinges as well as the capability to produce hinges to the customer’s specifications.
HUACI’s stainless steel butt hinges have been tested to EN1935: 2002 (Grade 13/Grade 10) and also fire rated to EN1634-1.

>>Full Catalog Download
>>Quick Inquiry and Quote

Successfully type-tested for conformity to all requirements of EN1935: 2002
Successfully passed and exceeded 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014
CE Declaration of Conformity available upon request
HUACI HB series hinges are approved by Certifire.* Certifire No. CF735
Successfully passed 180-minutes fire test of fire-resistant door and frame to UBC 7-2 (1997): NFPA252 (2008): UL 10 (b) Revision 1 (2009): UL 10 (c) (2009: CAN/ULC S104 (2010): NFPA 252 (2012),Certificate No. WH13-18485801
All EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT. Test report/certificate available upon request.
All UL/UBC/NFPA tests performed independently and certified byIntertek Testing Services NA, Inc.
* Certifire is an independent third party certification scheme that assures performance, quality, and traceability of fire protection products.
