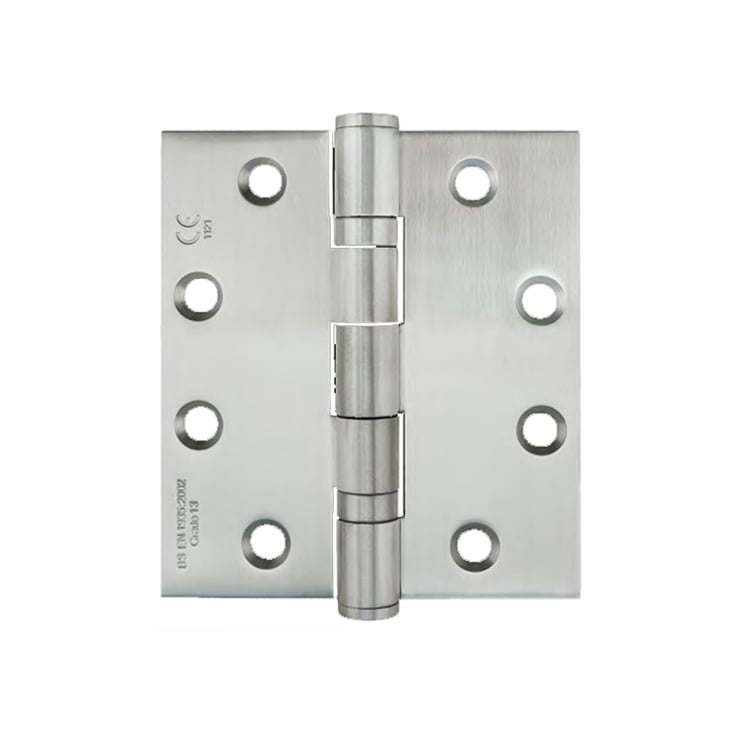

EN/CE/Certifire tested 4.5 - x 4 - x 3mm door hinge heavy duty use

Model No.HB454030
MaterialAISI304(AISI316)
Size4.5 - x 40 - x 3mm
Thickness3mm
FinishUS32D,US32,Satin PVD, Bright PVD
Corner TypeSquare corner
Installation MethodScrew fixings
Max Door Weight120KG
Ball BearingYes
Fire TestYes
CertificateCertifire, EN1935, EN1634, CE, etc.


>> Get Complete Door Hinge Catalog

Print It
  • Product Detail
  • Tests and Standards

HUACI heavy-duty door hinge HB454030 comes in the size of 4.5 - x 4 - x 3mm, and is designed for metal or timber fire rate door set.

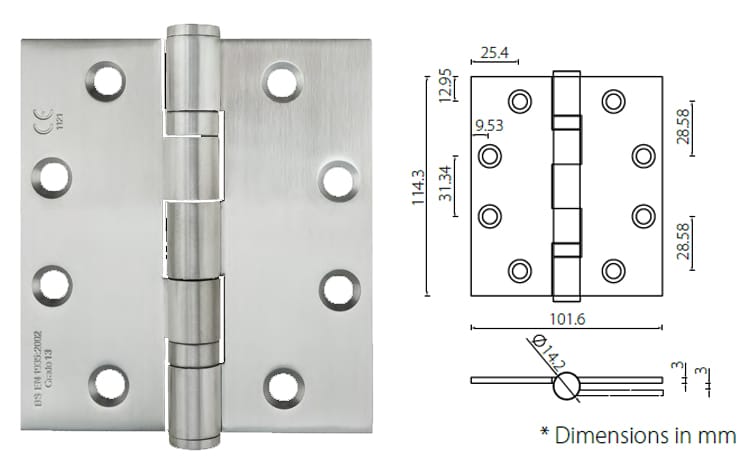

HB454030 certified heavy duty door hinge

Specifications and Features

- AISI304 stainless steel material for high corrosion resistance (AISI316 material available)
- Hardened Ball Bearings
- Square and radius corner version available
- Template drilled for easy installation and retrofitting purpose
- Designed for metal or timber fire rate door set
- Dogbolt version optional for enhanced security
- HUACI Door hinge heavy duty use HB454030 is suitable for a wide range of door thickness/weight (up to 120kg)
- Supplied with CSK stainless steel screws



EN1935:2002 Classifications

Standard Hinges

4761*14013

Dogbolt Hinges

4761*14013

*Provided they are fitted in accordance with the guidelines detailed in IFCA/06252.



Finishes

- Satin Stainless Steel (US32D/630)
- Polished Stainless Steel (US32/629)
- Satin PVD Titanium
- Bright PVD Titanium

*Other finishes available on request




HUACI Mortice Door Hinge

HUACI offers a standard range of hinges as well as the capability to produce hinges to the customer’s specifications.
For the standards and tests, HUACI’s stainless steel butt hinges have been tested to EN1935: 2002 (Grade 13/Grade 10) and also fire rated to EN1634-1.

>>Full Catalog Download
>>Quick Inquiry and Quote

Successfully type-tested for conformity to all requirements of EN1935: 2002
Successfully passed and exceeded 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014
CE Declaration of Conformity available upon request
HUACI HB series hinges are approved by Certifire.* Certifire No. CF735
Successfully passed 180-minutes fire test of fire-resistant door and frame to UBC 7-2 (1997): NFPA252 (2008): UL 10 (b) Revision 1 (2009): UL 10 (c) (2009: CAN/ULC S104 (2010): NFPA 252 (2012),Certificate No. WH13-18485801
All EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT. Test report/certificate available upon request.
All UL/UBC/NFPA tests performed independently and certified byIntertek Testing Services NA, Inc.
* Certifire is an independent third party certification scheme that assures performance, quality, and traceability of fire protection products.
