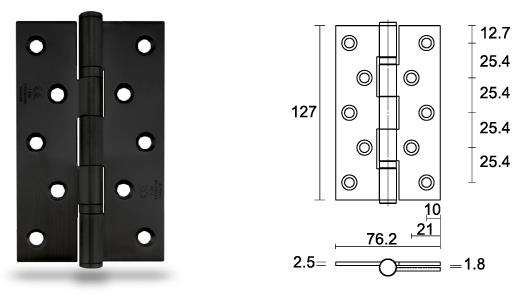

Stainless steel Certifire tested ball bearing butt hinge black,5 - x 3 - x 2.5mm

HUACI ball bearing mortise butt hinge black HB503025-BK comes in the size of 5 - x 3 - x 2.5mm; And it is suitable for a wide range of door thickness/weight(up to 120kg).

Specifications and Features

- AISI304 stainless steel material for high corrosion resistance (AISI316 material available)
- Hardened Ball Bearings
- Square and radius corner version available
- Template drilled for easy installation and retrofitting purpose
- Designed for metal or timber fire rate door set
- Dogbolt version optional for enhanced security
- HB503025 mortise butt hinge with black finish is suitable for a wide range of door thickness/weight (up to 120kg)
- Supplied with CSK stainless steel screws

EN1935:2002 Classifications

Standard Hinges

Dogbolt Hinges

*Provided they are fitted in accordance with the guidelines detailed in IFCA/06252.

Finishes

- Satin Stainless Steel (US32D/630)
- Polished Stainless Steel (US32/629)
- Satin PVD Titanium
- Bright PVD Titanium

*Other finishes available on request

HUACI Mortice Door Hinge

HUACI offers a standard range of hinges as well as the capability to produce hinges to the customer’s specifications.
For the standards and tests, HUACI’s stainless steel butt hinges have been tested to EN1935: 2002 (Grade 13/Grade 10) and also fire rated to EN1634-1.
