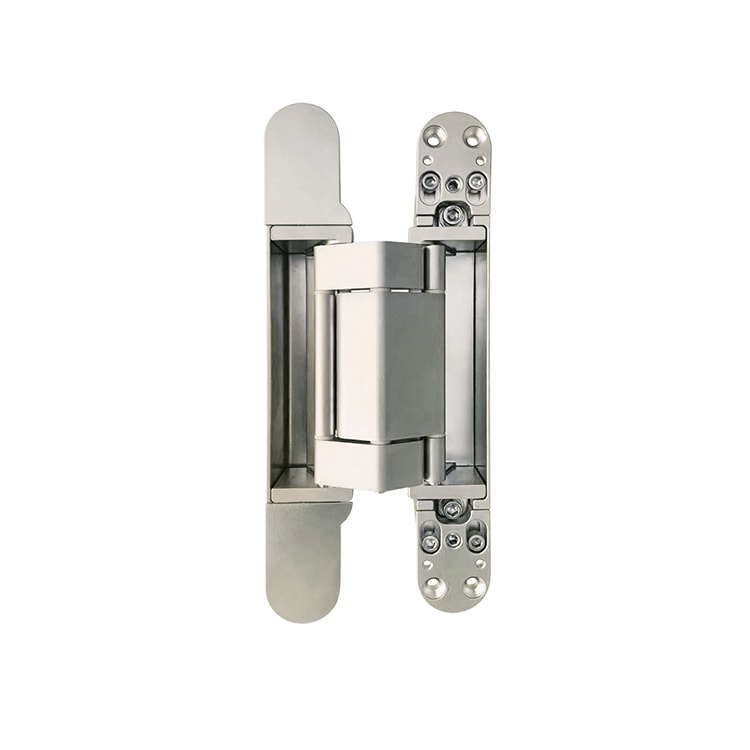

HAC216 heavy duty concealed hinge for max. door weight 160kgs

Model No.HAC216
MaterialZinc Alloy
Max. door weight160kgs
Min. door thickness60mm
Max. door width1200mm
Max. door height2400mm
Max. opening angle180°

Print It
  • Product Detail
  • Adjustment

HUACI HAC216 adjustable heavy duty concealed hinge is suitable for max. door weight of 160kg.

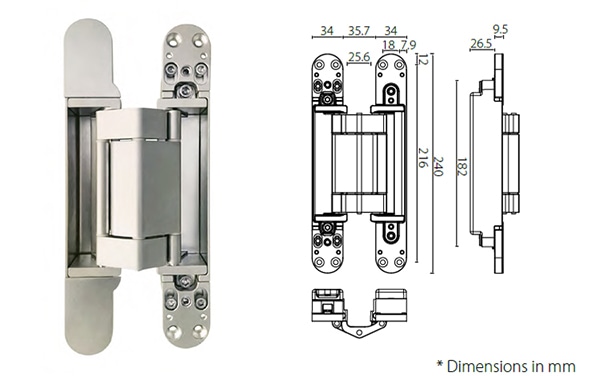

HAC216 heavy duty concealed hinge-3

Specification and Features
- HAC216 heavy duty concealed hinge is suitable for timber/wood, steel, and aluminum frame doors
- Wide 3-dimensional adjustment tolerance for more flexible installation
- Non handled the installation
- Matching cover plate for concealed fixing

Available FinishesTechnical Data
- Satin Chrome (SC)
- Bright Chrome (BC)
- Satin Nickel (SN)
* Other finishes available on request
- Max. door weight (with 2 hinges): 160kgs
- Min. door thickness: 60mm
- Max. door width: 1200mm
- Max. door height: 2400mm
- Max. opening angle: 180°

Standards and Tests
- High Corrosion Resistance tested according to EN1670:2007
- 200,000 cycles tested on 80kg door mass according to EN1935: 2002

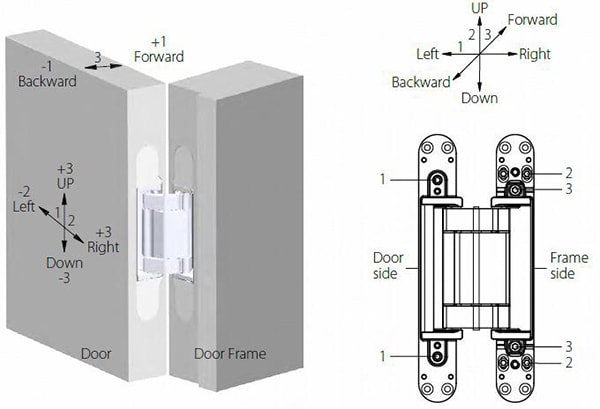

HAC216 heavy duty concealed hinge-5

1. Horizontal adjustment (X-Axis): (-2mm, +2mm)
2. Vertical adjustment (Y-Axis): (-2.5mm, +2.5mm)
3. Depth adjustment (Z-Axis): (-1mm, +1mm)

* Please DO NOT make more than one full turn (Max. 360°) of adjustment screws
* Please make sure every hinge on the door is properly loosened before making the adjustment
* Improper adjustment of the hinge may affect the overall performance or cause damage to the hinges, door, or frame.
