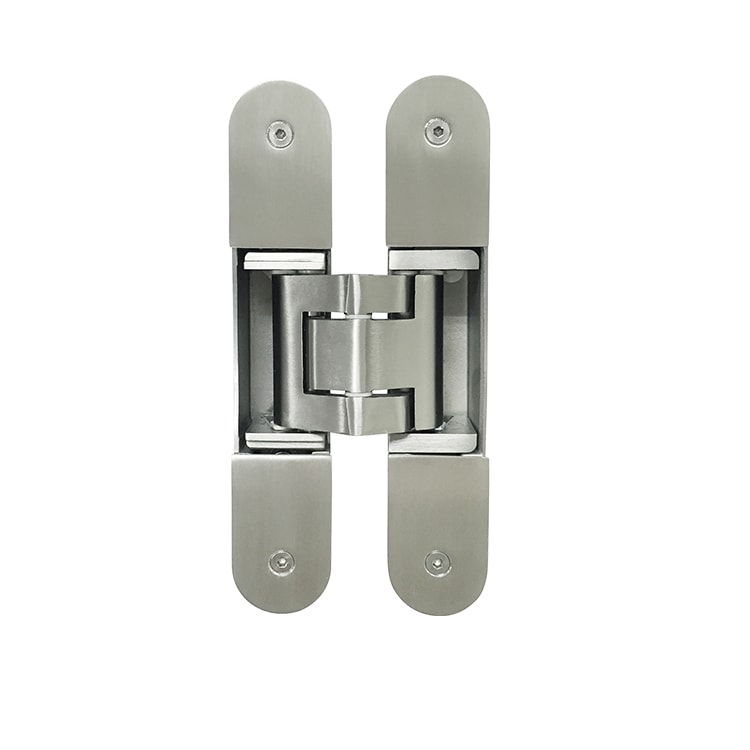

HAD312 stainless steel 3D adjustable concealed door hinge

HAD312 stainless steel 3D adjustable concealed door hinge

Model No.	HAD312
Material	Stainless Steel
Max. door weight	120kgs
Min. door thickness	38mm
Max. door width	1000mm
Max. door height	2400mm
Max. opening angle	180°

Print It

Product Detail
Adjustment

HAD312 stainless steel 3D adjustable concealed door hinge is suitable for the door weight of 120kg.

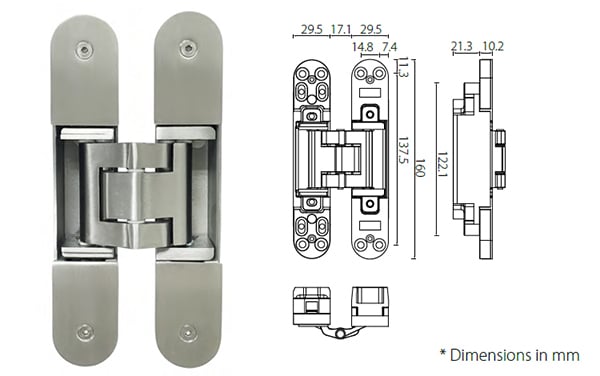

HAD31 series stainless steel concealed door hinge for 120kg doors-2

Specification and Features
- HAD312 concealed door hinge is suitable for timber/wood doors and frame
- 3-dimensional adjustment for better alignment between door and frame
- Non handed installation
- Mounting cover plate included

Available Finishes
- Satin Stainless Steel
* Other finishes available on request

Technical Data

Items No.	Max. door weight (with 2 hinges)	Max. door thickness	Max. door width	Max. door height	Max. opening angle
HAD312	120kg	38mm	1000mm	2400mm	180°

Standards and Tests
- High Corrosion Resistance tested according to EN1670:2007
- 200,000 cycles tested on 80kg door mass according to EN1935: 2002

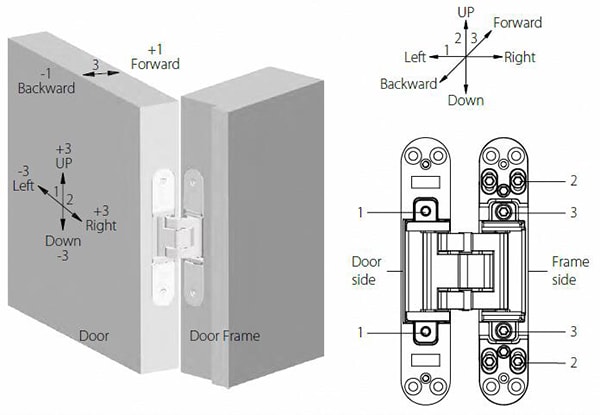

HAD31 series stainless steel concealed door hinge for 120kg doors-adjustment

	HAD312
1. Horizontal adjustment (X-Axis)	-3mm, +3mm
2. Vertical adjustment (Y-Axis)	-3mm, +3mm
3. Depth adjustment (Z-Axis)	-1mm, +1mm

* Please DO NOT make more than one full turn (Max. 360°) of adjustment screws
* Please make sure every hinge on the door is properly loosened before making the adjustment
* Improper adjustment of the hinge may affect the overall performance or cause damage to the hinges, door, or frame.
