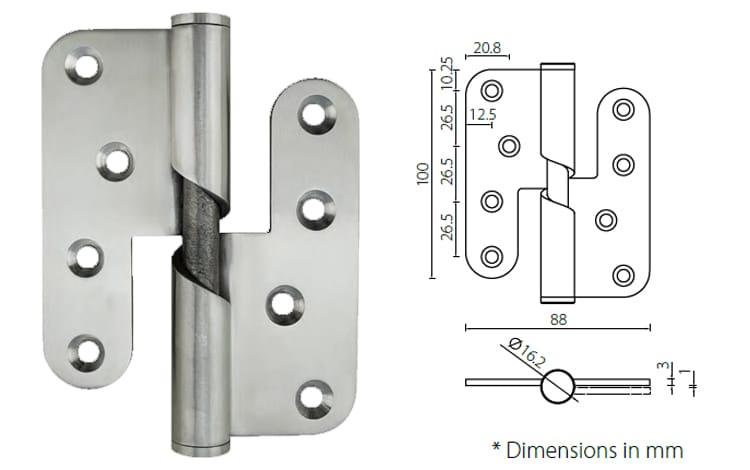

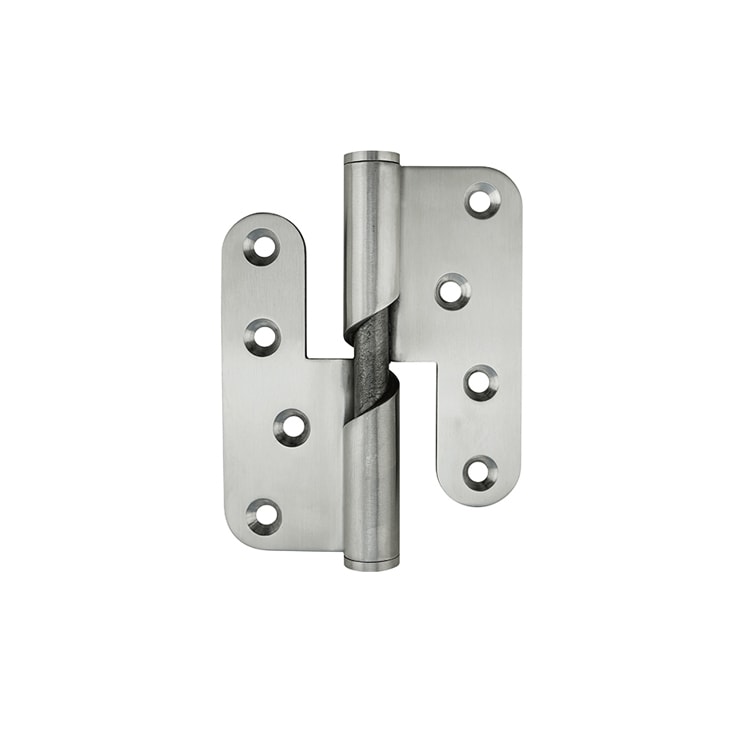

HUACI HLR1008830 L type rising lift off door hingeis made of satin stainless steel with ball bearing, it is used for max. door weight 60kg.
| Item No. | L(mm) | W(mm) | Thickness(mm) | Door Mass(kg) |
| HLL1008830 | 100 | 88 | 3.0 | 60 |
Standard Finish: Satin Stainless Steel
Specifications and Features
- Material: Stainless steel
- Square radius door hinge with two leaf plates
- Size: 100mm*88mm*3.0mm
- Installation screws available
- Application: Suitable for residential and commercial doors with max. weight of 60kg
