Door Hinge/

H type lift off hinge ball bearing stainless steel hinge

Model No.HLH1608030/HLH1407030/HLH1405525/HLH1105525
MaterialStainless Steel
Thickness2.5mm/3.0mm
Corner TypeRound corner
Installation MethodScrew fixings
Max. Door Weight40kg, 60kg
ServiceOEM/ODM

Print It
  • Product Detail

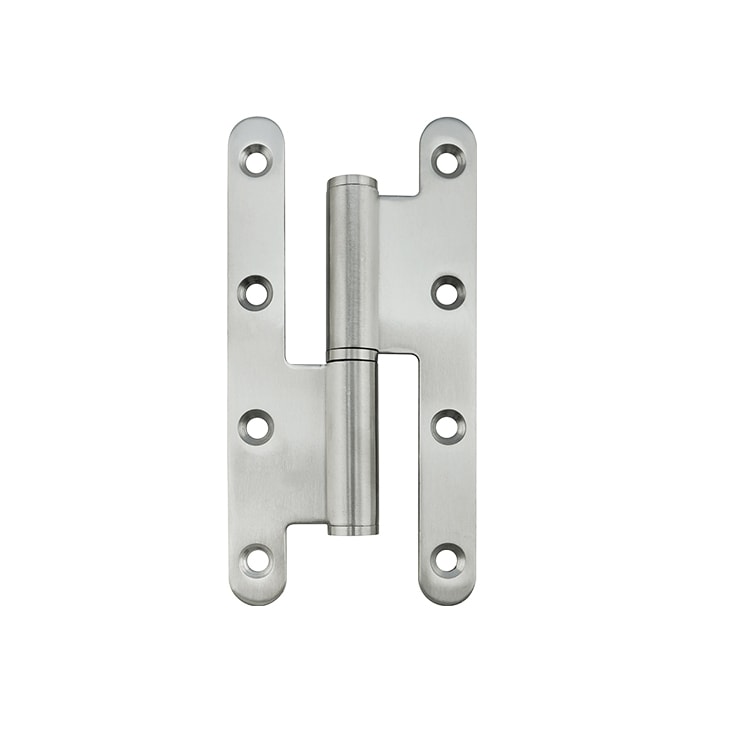

HUACI HLH Series H type lift off hinge is made of satin stainless steel with ball bearing, it is used for max. door weight 60kg.

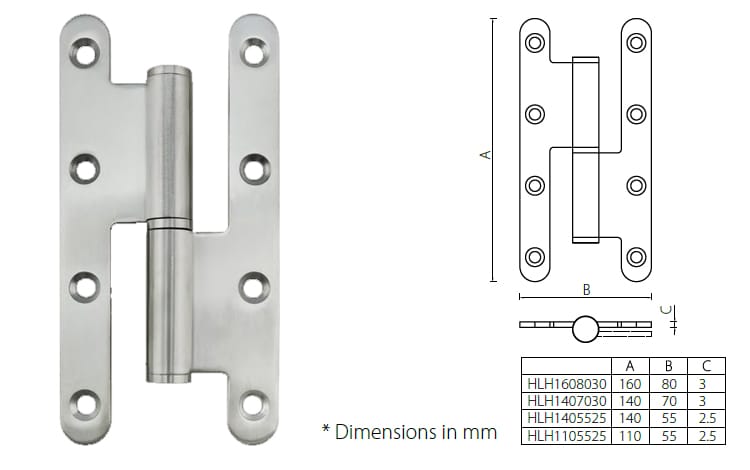

Stainless steel H type lift off hinge-2

Item No.L(mm)W(mm)Thickness(mm)Door Mass(kg)
HLH1608030160803.060
HLH1407030140703.060
HLH1405525140552.540
HLH1105525110552.540

Standard Finish: Satin Stainless Steel

Specifications and Features
- Material: Stainless steel
- Square radius door hinge with two leaf plates
- Installation screws available
- Application: Suitable for residential and commercial doors with max. weight of 60kg
