Door Hinge/

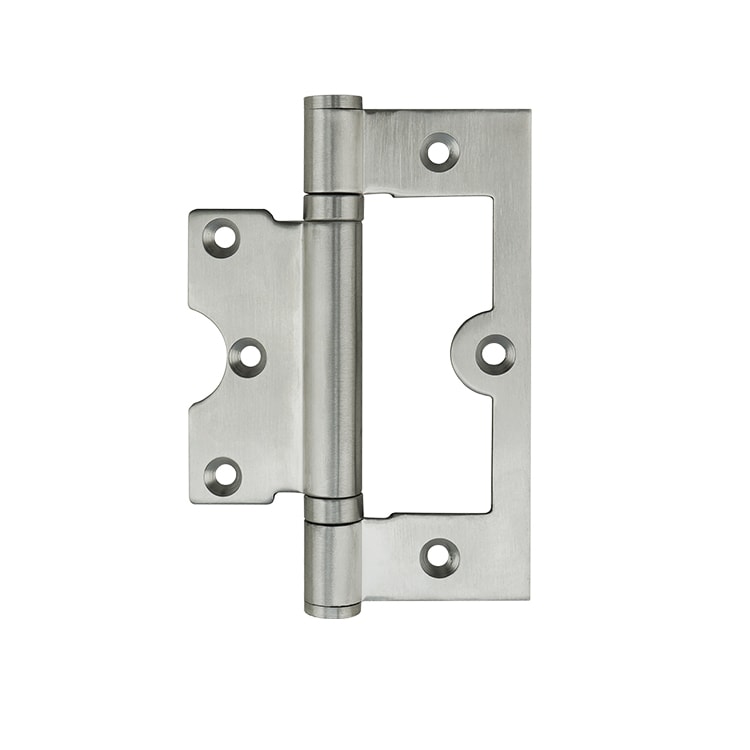

Stainless steel ball bearing flush butt hinge HFS4025

Model No.HFS4025
MaterialStainless Steel
Size102mm*72mm
Thickness2.5mm
Corner TypeSquare corner
Installation MethodScrew fixings
Max. Door Weight40kg

Print It
  • Product Detail

HUACI flush butt hinge HFS4025 is made of satin stainless steel with two ball bearings, it is a special hinge type used for lightweight doors, its installation needs no recess, very great for space saving.

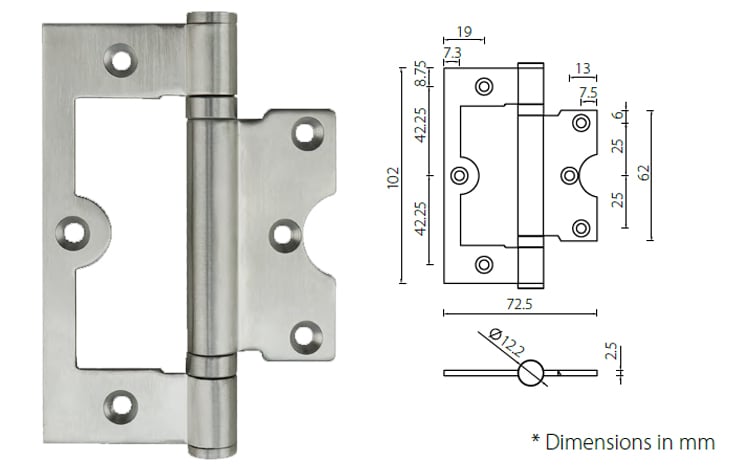

Stainless steel ball bearing flush butt hinge HFS4025-3

Item No.L(mm)W(mm)Thickness(mm)Door Mass(kg)
HFS4025102722.540

Standard Finish: Satin Stainless Steel



Specifications and Features
- Material: Stainless steel
- Square radius door hinge with small leaf plate to fit the other mounting leaf
- Max. door weight: 40kg
- Installation screws available
- Application: Light weighted wooden or metal doors less than 40kg
