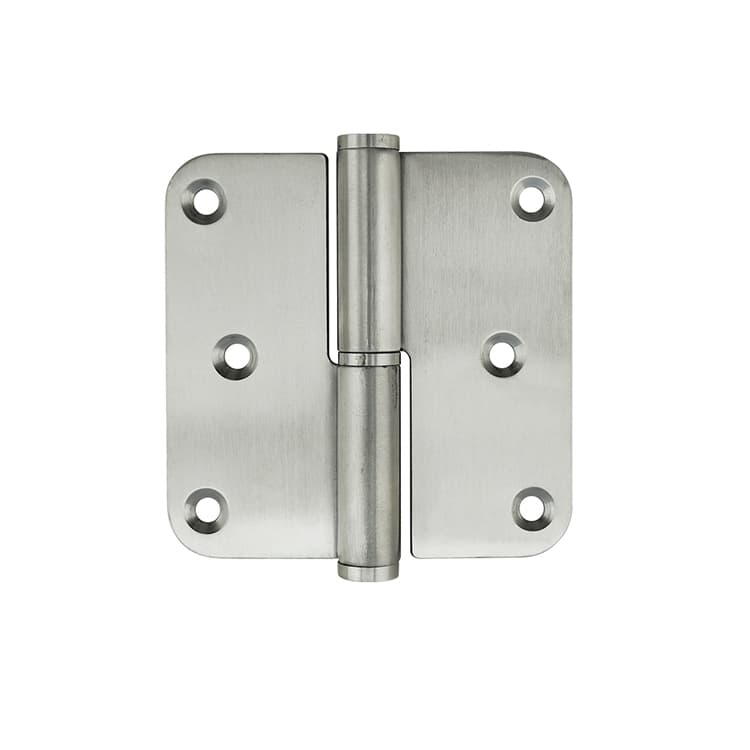

HUACI HLL8080 series square lift off butt hinge made of aluminum alloy is designed for residential interior wood door use. The hinge pin is permanently attached to the frame leaf, you can quickly and easily lift the door and make it installed or dismantled.

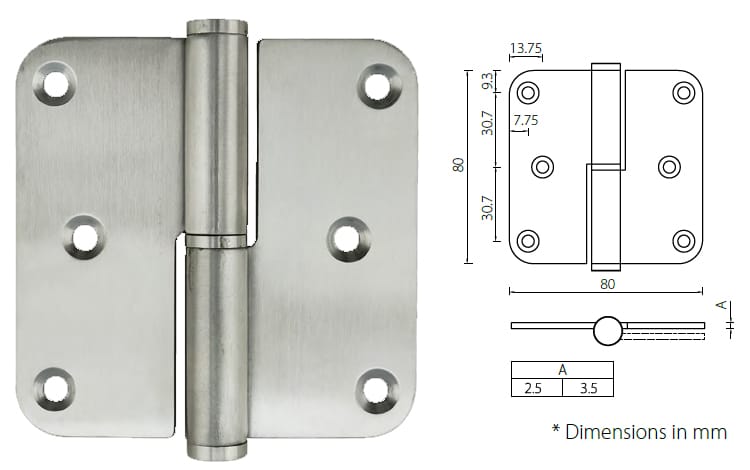

| Item No. | L(mm) | W(mm) | Thickness(mm) | Door Mass(kg) |
| HLL808025 | 80 | 80 | 2.5 | 40 |
| HLL808035 | 80 | 80 | 3.5 | 60 |
Standard Finish: Satin Stainless Steel
Specifications and Features,
- Material: Aluminum alloy
- Size: 80mm*80mm*3.5mm
- Application: Residential interior wood door
- Finish: Silver (F1) /White (power coating)
- Rust resistant and durable
- Light weight with clean design
